#include <BufferObject.h>

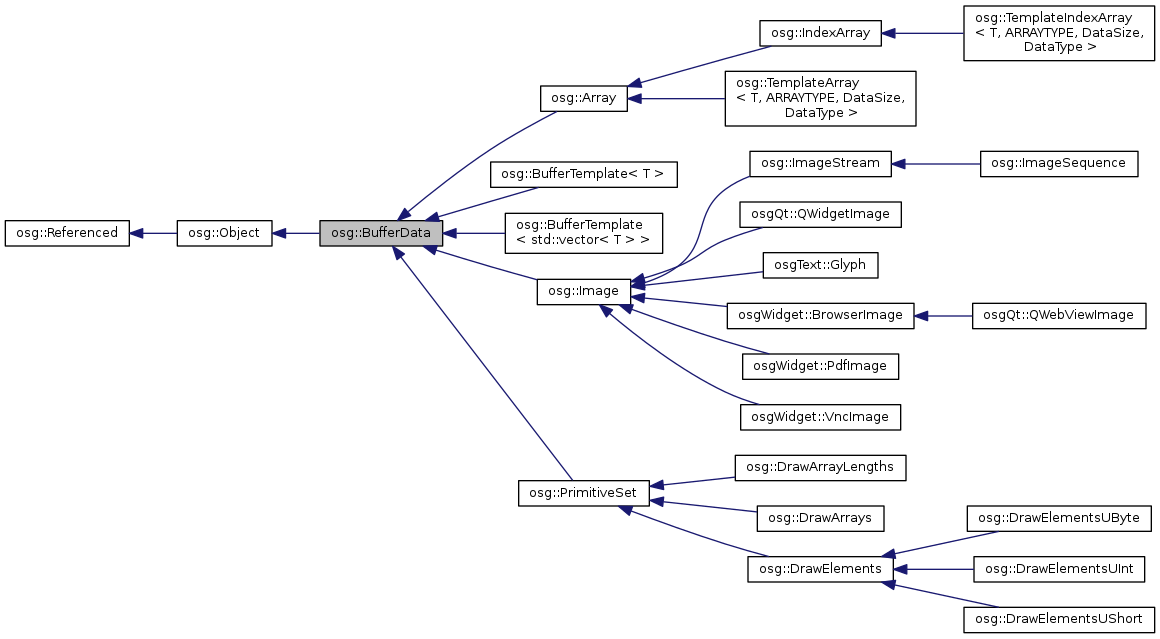

Inheritance diagram for osg::BufferData:

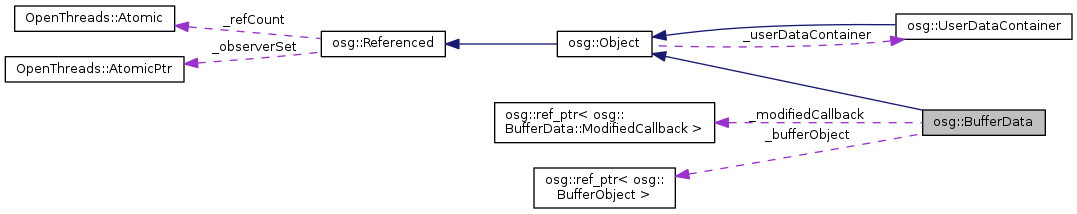

Collaboration diagram for osg::BufferData:

Classes
struct	ModifiedCallback

Public Member Functions
	BufferData ()

	BufferData (const BufferData &bd, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual const GLvoid *	getDataPointer () const =0

virtual unsigned int	getTotalDataSize () const =0

virtual osg::Array *	asArray ()

virtual const osg::Array *	asArray () const

virtual osg::PrimitiveSet *	asPrimitiveSet ()

virtual const osg::PrimitiveSet *	asPrimitiveSet () const

virtual osg::Image *	asImage ()

virtual const osg::Image *	asImage () const

void	setBufferObject (BufferObject *bufferObject)

BufferObject *	getBufferObject ()

const BufferObject *	getBufferObject () const

void	setBufferIndex (unsigned int index)

unsigned int	getBufferIndex () const

GLBufferObject *	getGLBufferObject (unsigned int contextID) const

GLBufferObject *	getOrCreateGLBufferObject (unsigned int contextID) const

void	setModifiedCallback (ModifiedCallback *md)

ModifiedCallback *	getModifiedCallback ()

const ModifiedCallback *	getModifiedCallback () const

void	dirty ()

void	setModifiedCount (unsigned int value)

unsigned int	getModifiedCount () const

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

void	releaseGLObjects (State *state=0) const

unsigned int	getNumClients () const

void	addClient (osg::Object *)

void	removeClient (osg::Object *)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~BufferData ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
unsigned int	_modifiedCount

unsigned int	_bufferIndex

osg::ref_ptr< BufferObject >	_bufferObject

osg::ref_ptr< ModifiedCallback >	_modifiedCallback

unsigned int	_numClients

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Definition at line 501 of file BufferObject.h.

Constructor & Destructor Documentation

osg::BufferData::BufferData ( )

inline

Definition at line 505 of file BufferObject.h.

osg::BufferData::BufferData	(	const BufferData &	bd,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 512 of file BufferObject.h.

virtual osg::BufferData::~BufferData ( )

protectedvirtual

Member Function Documentation

void osg::BufferData::addClient ( osg::Object * )

inline

Definition at line 585 of file BufferObject.h.

virtual osg::Array* osg::BufferData::asArray ( )

inlinevirtual

Reimplemented in osg::Array.

Definition at line 526 of file BufferObject.h.

virtual const osg::Array* osg::BufferData::asArray ( ) const

inlinevirtual

Reimplemented in osg::Array.

Definition at line 527 of file BufferObject.h.

virtual osg::Image* osg::BufferData::asImage ( )

inlinevirtual

Reimplemented in osg::Image.

Definition at line 532 of file BufferObject.h.

virtual const osg::Image* osg::BufferData::asImage ( ) const

inlinevirtual

Reimplemented in osg::Image.

Definition at line 533 of file BufferObject.h.

virtual osg::PrimitiveSet* osg::BufferData::asPrimitiveSet ( )

inlinevirtual

Reimplemented in osg::PrimitiveSet.

Definition at line 529 of file BufferObject.h.

virtual const osg::PrimitiveSet* osg::BufferData::asPrimitiveSet ( ) const

inlinevirtual

Reimplemented in osg::PrimitiveSet.

Definition at line 530 of file BufferObject.h.

virtual const char* osg::BufferData::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Implements osg::Object.

Reimplemented in osg::DrawElementsUInt, osg::DrawElementsUShort, osg::DrawElementsUByte, osg::DrawArrayLengths, osg::DrawArrays, osg::PrimitiveSet, osg::Image, osg::Array, osg::BufferTemplate< std::vector< T > >, osg::BufferTemplate< T >, osg::ImageSequence, and osg::ImageStream.

Definition at line 521 of file BufferObject.h.

void osg::BufferData::dirty ( )

inline

Dirty the primitive, which increments the modified count, to force buffer objects to update. If a ModifiedCallback is attached to this BufferData then the callback is called prior to the bufferObject's dirty is called.

Definition at line 562 of file BufferObject.h.

Here is the caller graph for this function:

unsigned int osg::BufferData::getBufferIndex ( ) const

inline

Definition at line 540 of file BufferObject.h.

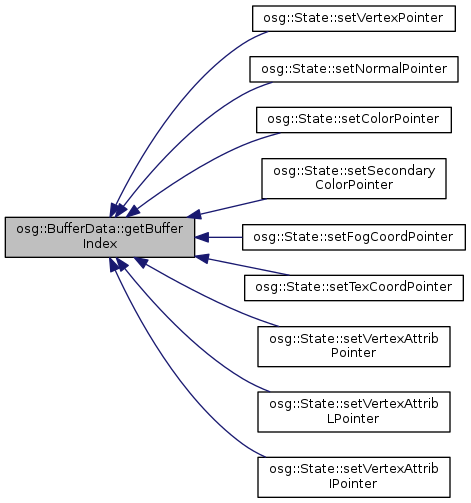

Here is the caller graph for this function:

BufferObject* osg::BufferData::getBufferObject ( )

inline

Definition at line 536 of file BufferObject.h.

const BufferObject* osg::BufferData::getBufferObject ( ) const

inline

Definition at line 537 of file BufferObject.h.

virtual const GLvoid* osg::BufferData::getDataPointer ( ) const

pure virtual

Implemented in osg::DrawElementsUInt, osg::DrawElementsUShort, osg::DrawElementsUByte, osg::TemplateIndexArray< T, ARRAYTYPE, DataSize, DataType >, osg::TemplateArray< T, ARRAYTYPE, DataSize, DataType >, osg::PrimitiveSet, osg::Array, osg::Image, osg::BufferTemplate< std::vector< T > >, and osg::BufferTemplate< T >.

GLBufferObject* osg::BufferData::getGLBufferObject ( unsigned int contextID ) const

inline

Definition at line 542 of file BufferObject.h.

ModifiedCallback* osg::BufferData::getModifiedCallback ( )

inline

Definition at line 557 of file BufferObject.h.

const ModifiedCallback* osg::BufferData::getModifiedCallback ( ) const

inline

Definition at line 558 of file BufferObject.h.

unsigned int osg::BufferData::getModifiedCount ( ) const

inline

Get modified count value.

Definition at line 573 of file BufferObject.h.

unsigned int osg::BufferData::getNumClients ( ) const

inline

Definition at line 583 of file BufferObject.h.

GLBufferObject* osg::BufferData::getOrCreateGLBufferObject ( unsigned int contextID ) const

inline

Definition at line 543 of file BufferObject.h.

Here is the caller graph for this function:

virtual unsigned int osg::BufferData::getTotalDataSize ( ) const

pure virtual

Implemented in osg::DrawElementsUInt, osg::DrawElementsUShort, osg::DrawElementsUByte, osg::TemplateIndexArray< T, ARRAYTYPE, DataSize, DataType >, osg::TemplateArray< T, ARRAYTYPE, DataSize, DataType >, osg::PrimitiveSet, osg::Array, osg::Image, osg::BufferTemplate< std::vector< T > >, and osg::BufferTemplate< T >.

virtual bool osg::BufferData::isSameKindAs ( const Object * obj ) const

inlinevirtual

Reimplemented from osg::Object.

Reimplemented in osg::DrawElementsUInt, osg::DrawElementsUShort, osg::DrawElementsUByte, osg::DrawArrayLengths, osg::IndexArray, osg::DrawArrays, osg::PrimitiveSet, osg::Image, osg::Array, osg::BufferTemplate< std::vector< T > >, osg::BufferTemplate< T >, osg::ImageSequence, and osg::ImageStream.

Definition at line 519 of file BufferObject.h.

virtual const char* osg::BufferData::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Implements osg::Object.

Reimplemented in osg::DrawElementsUInt, osg::DrawElementsUShort, osg::DrawElementsUByte, osg::DrawArrayLengths, osg::DrawArrays, osg::PrimitiveSet, osg::Image, osg::Array, osg::BufferTemplate< std::vector< T > >, osg::BufferTemplate< T >, osg::ImageSequence, and osg::ImageStream.

Definition at line 520 of file BufferObject.h.

void osg::BufferData::releaseGLObjects ( State * state = 0 ) const

virtual

If State is non-zero, this function releases OpenGL objects for the specified graphics context. Otherwise, releases OpenGL objects for all graphics contexts.

Reimplemented from osg::Object.

void osg::BufferData::removeClient ( osg::Object * )

inline

Definition at line 587 of file BufferObject.h.

virtual void osg::BufferData::resizeGLObjectBuffers ( unsigned int maxSize )

virtual

Resize any per context GLObject buffers to specified size.

Reimplemented from osg::Object.

void osg::BufferData::setBufferIndex ( unsigned int index )

inline

Definition at line 539 of file BufferObject.h.

void osg::BufferData::setBufferObject ( BufferObject * bufferObject )

Here is the caller graph for this function:

void osg::BufferData::setModifiedCallback ( ModifiedCallback * md )

inline

Definition at line 556 of file BufferObject.h.

void osg::BufferData::setModifiedCount ( unsigned int value )

inline

Set the modified count value.

Definition at line 570 of file BufferObject.h.

Member Data Documentation

unsigned int osg::BufferData::_bufferIndex

protected

Definition at line 595 of file BufferObject.h.

osg::ref_ptr<BufferObject> osg::BufferData::_bufferObject

protected

Definition at line 596 of file BufferObject.h.

osg::ref_ptr<ModifiedCallback> osg::BufferData::_modifiedCallback

protected

Definition at line 597 of file BufferObject.h.

unsigned int osg::BufferData::_modifiedCount

protected

Definition at line 593 of file BufferObject.h.

unsigned int osg::BufferData::_numClients

protected

Definition at line 599 of file BufferObject.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/BufferObject.h
