osg::BlendFunc Class Reference

#include <BlendFunc.h>

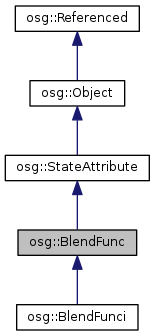

Inheritance diagram for osg::BlendFunc:
Inheritance graph
[legend]

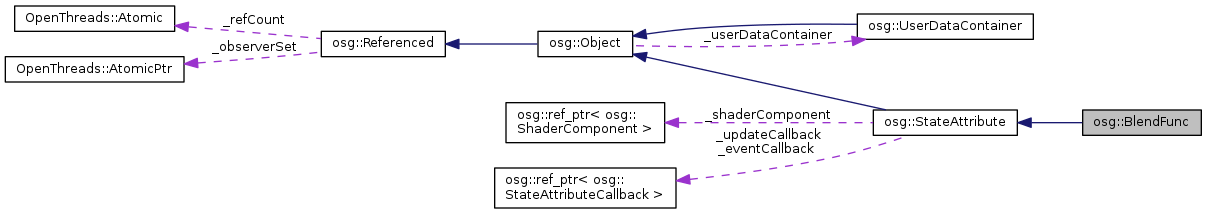

Collaboration diagram for osg::BlendFunc:
Collaboration graph
[legend]

Public Types

enum  BlendFuncMode {
  DST_ALPHA = GL_DST_ALPHA, DST_COLOR = GL_DST_COLOR, ONE = GL_ONE, ONE_MINUS_DST_ALPHA = GL_ONE_MINUS_DST_ALPHA,
  ONE_MINUS_DST_COLOR = GL_ONE_MINUS_DST_COLOR, ONE_MINUS_SRC_ALPHA = GL_ONE_MINUS_SRC_ALPHA, ONE_MINUS_SRC_COLOR = GL_ONE_MINUS_SRC_COLOR, SRC_ALPHA = GL_SRC_ALPHA,
  SRC_ALPHA_SATURATE = GL_SRC_ALPHA_SATURATE, SRC_COLOR = GL_SRC_COLOR, CONSTANT_COLOR = GL_CONSTANT_COLOR, ONE_MINUS_CONSTANT_COLOR = GL_ONE_MINUS_CONSTANT_COLOR,
  CONSTANT_ALPHA = GL_CONSTANT_ALPHA, ONE_MINUS_CONSTANT_ALPHA = GL_ONE_MINUS_CONSTANT_ALPHA, ZERO = GL_ZERO
}

- Public Types inherited from osg::StateAttribute
enum  Values {
  OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4,
  INHERIT = 0x8
}

enum  Type {
  TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL,
  ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE,
  FOG, FRONTFACE, LIGHT, POINT,
  LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL,
  TEXENV, TEXENVFILTER, TEXGEN, TEXMAT,
  LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP,
  STENCIL, COLORMASK, DEPTH, VIEWPORT,
  SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE,
  COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE,
  PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI,
  PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR,
  OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS,
  OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING,
  TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT,
  VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100
}

typedef GLenum GLMode

typedef unsigned int GLModeValue

typedef unsigned int OverrideValue

typedef std::pair< Type,
unsigned int > 		TypeMemberPair

typedef std::vector< StateSet * > ParentList

typedef osg::StateAttributeCallback Callback

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }


Public Member Functions

 BlendFunc ()

 BlendFunc (GLenum source, GLenum destination)

 BlendFunc (GLenum source, GLenum destination, GLenum source_alpha, GLenum destination_alpha)

 BlendFunc (const BlendFunc &trans, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

 META_StateAttribute (osg, BlendFunc, BLENDFUNC)

virtual int compare (const StateAttribute &sa) const

virtual bool getModeUsage (StateAttribute::ModeUsage &usage) const

void setFunction (GLenum source, GLenum destination)

void setFunction (GLenum source_rgb, GLenum destination_rgb, GLenum source_alpha, GLenum destination_alpha)

void setSource (GLenum source)

GLenum getSource () const

void setSourceRGB (GLenum source)

GLenum getSourceRGB () const

void setSourceAlpha (GLenum source)

GLenum getSourceAlpha () const

void setDestination (GLenum destination)

GLenum getDestination () const

void setDestinationRGB (GLenum destination)

GLenum getDestinationRGB () const

void setDestinationAlpha (GLenum destination)

GLenum getDestinationAlpha () const

virtual void apply (State &state) const

- Public Member Functions inherited from osg::StateAttribute
 StateAttribute ()

 StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object * cloneType () const =0

virtual Object * clone (const CopyOp &) const =0

virtual bool isSameKindAs (const Object *obj) const

virtual const char * libraryName () const

virtual const char * className () const

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Texture * asTexture ()

virtual const Texture * asTexture () const

virtual Type getType () const =0

virtual unsigned int getMember () const

TypeMemberPair getTypeMemberPair () const

virtual bool isTextureAttribute () const

bool operator< (const StateAttribute &rhs) const

bool operator== (const StateAttribute &rhs) const

bool operator!= (const StateAttribute &rhs) const

const ParentList & getParents () const

StateSet * getParent (unsigned int i)

const StateSet * getParent (unsigned int i) const

unsigned int getNumParents () const

void setShaderComponent (ShaderComponent *sc)

ShaderComponent * getShaderComponent ()

const ShaderComponent * getShaderComponent () const

virtual bool checkValidityOfAssociatedModes (osg::State &) const

void setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback * getUpdateCallback ()

const StateAttributeCallback * getUpdateCallback () const

void setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback * getEventCallback ()

const StateAttributeCallback * getEventCallback () const

virtual void compileGLObjects (State &) const

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (State *=0) const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Protected Member Functions

virtual ~BlendFunc ()

- Protected Member Functions inherited from osg::StateAttribute
virtual ~StateAttribute ()

void addParent (osg::StateSet *object)

void removeParent (osg::StateSet *object)

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

GLenum _source_factor

GLenum _destination_factor

GLenum _source_factor_alpha

GLenum _destination_factor_alpha

- Protected Attributes inherited from osg::StateAttribute
ParentList _parents

ref_ptr< ShaderComponent > _shaderComponent

ref_ptr< StateAttributeCallback > _updateCallback

ref_ptr< StateAttributeCallback > _eventCallback

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Additional Inherited Members

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Detailed Description

Encapsulates OpenGL blend/transparency state.

Blending combines incoming fragment with a fragment already present in the target buffer.

OpenGL 1.1 supports following source and destination blending factors: GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA, GL_DST_ALPHA, GL_ONE_MINUS_DST_ALPHA, GL_ZERO, GL_ONE.

Moreover, there are three source-only blending factors: GL_DST_COLOR, GL_ONE_MINUS_DST_COLOR, GL_SRC_ALPHA_SATURATE and two destination-only blending factors: GL_SRC_COLOR, GL_ONE_MINUS_SRC_COLOR. OpenGL 1.4 allowed to use these five blending factors as both - source and destination blending factors.

Following four source and destination blending factors were added by Imaging subset of OpenGL 1.2 and made mandatory by OpenGL 1.4: GL_CONSTANT_COLOR, GL_ONE_MINUS_CONSTANT_COLOR, GL_CONSTANT_ALPHA, GL_ONE_MINUS_CONSTANT_ALPHA

OpenGL 1.4 further provides glBlendFuncSeparate (promoted from GL_EXT_blend_func_separate). It makes possible to set blending functions for RGB and Alpha separately. Before, it was possible to set just one blending function for RGBA.

Definition at line 65 of file BlendFunc.h.

Member Enumeration Documentation

enum osg::BlendFunc::BlendFuncMode
Enumerator
DST_ALPHA
DST_COLOR
ONE
ONE_MINUS_DST_ALPHA
ONE_MINUS_DST_COLOR
ONE_MINUS_SRC_ALPHA
ONE_MINUS_SRC_COLOR
SRC_ALPHA
SRC_ALPHA_SATURATE
SRC_COLOR
CONSTANT_COLOR
ONE_MINUS_CONSTANT_COLOR
CONSTANT_ALPHA
ONE_MINUS_CONSTANT_ALPHA
ZERO

Definition at line 106 of file BlendFunc.h.

Constructor & Destructor Documentation

osg::BlendFunc::BlendFunc ( )
osg::BlendFunc::BlendFunc ( GLenum  source,
GLenum  destination
)
osg::BlendFunc::BlendFunc ( GLenum  source,
GLenum  destination,
GLenum  source_alpha,
GLenum  destination_alpha
)
osg::BlendFunc::BlendFunc ( const BlendFunc &  trans,
const CopyOp &  copyop = CopyOp::SHALLOW_COPY
)
inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 75 of file BlendFunc.h.

virtual osg::BlendFunc::~BlendFunc ( )
protectedvirtual

Member Function Documentation

virtual void osg::BlendFunc::apply ( State &  ) const
virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

Reimplemented in osg::BlendFunci.

virtual int osg::BlendFunc::compare ( const StateAttribute &  sa) const
inlinevirtual

Return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Reimplemented in osg::BlendFunci.

Definition at line 85 of file BlendFunc.h.

Here is the caller graph for this function:

GLenum osg::BlendFunc::getDestination ( ) const
inline

Definition at line 150 of file BlendFunc.h.

GLenum osg::BlendFunc::getDestinationAlpha ( ) const
inline

Definition at line 156 of file BlendFunc.h.

GLenum osg::BlendFunc::getDestinationRGB ( ) const
inline

Definition at line 153 of file BlendFunc.h.

virtual bool osg::BlendFunc::getModeUsage ( StateAttribute::ModeUsage &  ) const
inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 100 of file BlendFunc.h.

Here is the call graph for this function:

GLenum osg::BlendFunc::getSource ( ) const
inline

Definition at line 141 of file BlendFunc.h.

GLenum osg::BlendFunc::getSourceAlpha ( ) const
inline

Definition at line 147 of file BlendFunc.h.

GLenum osg::BlendFunc::getSourceRGB ( ) const
inline

Definition at line 144 of file BlendFunc.h.

osg::BlendFunc::META_StateAttribute ( osg  ,
BlendFunc  ,
BLENDFUNC
)
void osg::BlendFunc::setDestination ( GLenum  destination)
inline

Definition at line 149 of file BlendFunc.h.

void osg::BlendFunc::setDestinationAlpha ( GLenum  destination)
inline

Definition at line 155 of file BlendFunc.h.

void osg::BlendFunc::setDestinationRGB ( GLenum  destination)
inline

Definition at line 152 of file BlendFunc.h.

void osg::BlendFunc::setFunction ( GLenum  source,
GLenum  destination
)
inline

Definition at line 124 of file BlendFunc.h.

void osg::BlendFunc::setFunction ( GLenum  source_rgb,
GLenum  destination_rgb,
GLenum  source_alpha,
GLenum  destination_alpha
)
inline

Definition at line 132 of file BlendFunc.h.

void osg::BlendFunc::setSource ( GLenum  source)
inline

Definition at line 140 of file BlendFunc.h.

void osg::BlendFunc::setSourceAlpha ( GLenum  source)
inline

Definition at line 146 of file BlendFunc.h.

void osg::BlendFunc::setSourceRGB ( GLenum  source)
inline

Definition at line 143 of file BlendFunc.h.

Member Data Documentation

GLenum osg::BlendFunc::_destination_factor
protected

Definition at line 165 of file BlendFunc.h.

GLenum osg::BlendFunc::_destination_factor_alpha
protected

Definition at line 167 of file BlendFunc.h.

GLenum osg::BlendFunc::_source_factor
protected

Definition at line 164 of file BlendFunc.h.

GLenum osg::BlendFunc::_source_factor_alpha
protected

Definition at line 166 of file BlendFunc.h.

The documentation for this class was generated from the following file:
Generated on Tue Oct 4 2016 19:20:49 for OSG by   doxygen 1.8.8
