osgPresentation::AnimationMaterial Class Reference

#include <AnimationMaterial.h>

Inheritance diagram for osgPresentation::AnimationMaterial:

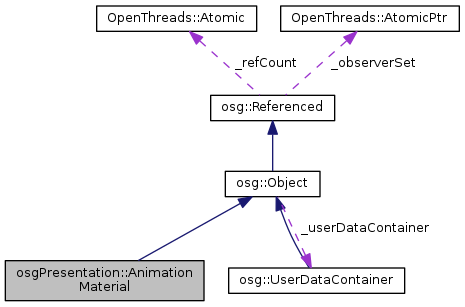

Collaboration diagram for osgPresentation::AnimationMaterial:

Public Types
enum	LoopMode { SWING, LOOP, NO_LOOPING }
typedef std::map< double, osg::ref_ptr< osg::Material > >	TimeControlPointMap
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	AnimationMaterial ()
	AnimationMaterial (const AnimationMaterial &ap, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Object (osg, AnimationMaterial)
bool	getMaterial (double time, osg::Material &material) const
void	insert (double time, osg::Material *material)
double	getFirstTime () const
double	getLastTime () const
double	getPeriod () const
void	setLoopMode (LoopMode lm)
LoopMode	getLoopMode () const
TimeControlPointMap &	getTimeControlPointMap ()
const TimeControlPointMap &	getTimeControlPointMap () const
void	read (std::istream &in)
void	write (std::ostream &out) const
bool	requiresBlending () const
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const =0
virtual Object *	clone (const CopyOp &) const =0
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
virtual const char *	className () const =0
std::string	getCompoundClassName () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
virtual void	resizeGLObjectBuffers (unsigned int)
virtual void	releaseGLObjects (osg::State *=0) const
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~AnimationMaterial ()
void	interpolate (osg::Material &material, float r, const osg::Material &lhs, const osg::Material &rhs) const
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
TimeControlPointMap	_timeControlPointMap
LoopMode	_loopMode
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

AnimationMaterial for specify the time varying transformation pathway to use when update camera and model objects. Subclassed from Transform::ComputeTransformCallback allows AnimationMaterial to be attached directly to Transform nodes to move subgraphs around the scene.

Definition at line 31 of file AnimationMaterial.h.

Member Typedef Documentation

typedef std::map<double, osg::ref_ptr<osg::Material> > osgPresentation::AnimationMaterial::TimeControlPointMap

Definition at line 66 of file AnimationMaterial.h.

Member Enumeration Documentation

enum osgPresentation::AnimationMaterial::LoopMode

Enumerator
SWING
LOOP
NO_LOOPING

Definition at line 54 of file AnimationMaterial.h.

Constructor & Destructor Documentation

osgPresentation::AnimationMaterial::AnimationMaterial ( )

inline

Definition at line 35 of file AnimationMaterial.h.

osgPresentation::AnimationMaterial::AnimationMaterial ( const AnimationMaterial &  ap, const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY  )

inline

Definition at line 37 of file AnimationMaterial.h.

virtual osgPresentation::AnimationMaterial::~AnimationMaterial ( )

inlineprotectedvirtual

Definition at line 82 of file AnimationMaterial.h.

Member Function Documentation

double osgPresentation::AnimationMaterial::getFirstTime ( ) const

inline

Definition at line 50 of file AnimationMaterial.h.

double osgPresentation::AnimationMaterial::getLastTime ( ) const

inline

Definition at line 51 of file AnimationMaterial.h.

LoopMode osgPresentation::AnimationMaterial::getLoopMode ( ) const

inline

Definition at line 63 of file AnimationMaterial.h.

bool osgPresentation::AnimationMaterial::getMaterial	(	double	time,
		osg::Material &	material
	)		const

get the transformation matrix for a point in time.

double osgPresentation::AnimationMaterial::getPeriod ( ) const

inline

Definition at line 52 of file AnimationMaterial.h.

TimeControlPointMap& osgPresentation::AnimationMaterial::getTimeControlPointMap ( )

inline

Definition at line 68 of file AnimationMaterial.h.

const TimeControlPointMap& osgPresentation::AnimationMaterial::getTimeControlPointMap ( ) const

inline

Definition at line 70 of file AnimationMaterial.h.

void osgPresentation::AnimationMaterial::insert	(	double	time,
		osg::Material *	material
	)

void osgPresentation::AnimationMaterial::interpolate ( osg::Material &  material, float  r, const osg::Material &  lhs, const osg::Material &  rhs  ) const

protected

osgPresentation::AnimationMaterial::META_Object	(	osg	,
		AnimationMaterial
	)

void osgPresentation::AnimationMaterial::read

(

std::istream &

in

)

read the anumation path from a flat ascii file stream.

bool osgPresentation::AnimationMaterial::requiresBlending

(

)

const

void osgPresentation::AnimationMaterial::setLoopMode ( LoopMode  lm )

inline

Definition at line 61 of file AnimationMaterial.h.

void osgPresentation::AnimationMaterial::write

(

std::ostream &

out

)

const

write the anumation path to a flat ascii file stream.

Member Data Documentation

LoopMode osgPresentation::AnimationMaterial::_loopMode

protected

Definition at line 87 of file AnimationMaterial.h.

TimeControlPointMap osgPresentation::AnimationMaterial::_timeControlPointMap

protected

Definition at line 86 of file AnimationMaterial.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgPresentation/AnimationMaterial.h
