#include <ImageOptions.h>

Inheritance diagram for osgDB::ImageOptions:

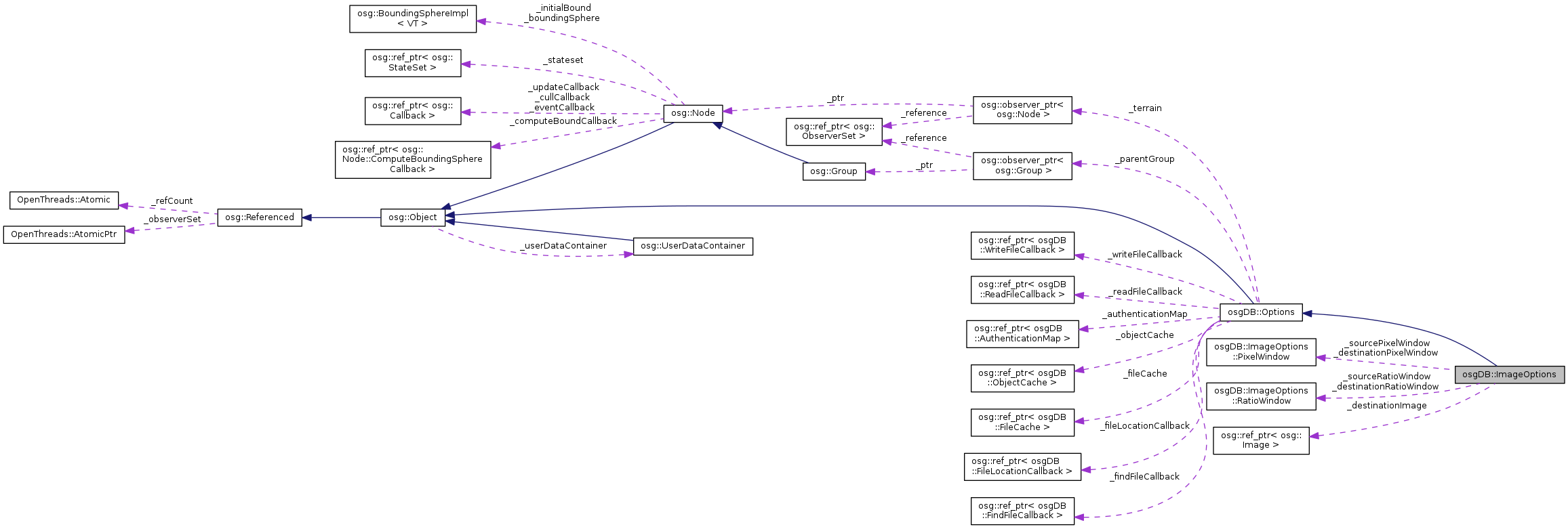

Collaboration diagram for osgDB::ImageOptions:

Classes
struct	PixelWindow

struct	RatioWindow

struct	TexCoordRange

Public Types
enum	ImageWindowMode { ALL_IMAGE, RATIO_WINDOW, PIXEL_WINDOW }

enum	ImageSamplingMode { NEAREST, LINEAR, CUBIC }

Public Types inherited from osgDB::Options
enum	CacheHintOptions { CACHE_NONE = 0, CACHE_NODES = 1<<0, CACHE_IMAGES = 1<<1, CACHE_HEIGHTFIELDS = 1<<2, CACHE_ARCHIVES = 1<<3, CACHE_OBJECTS = 1<<4, CACHE_SHADERS = 1<<5, CACHE_ALL }
	bit mask for setting up which object types get cached by readObject/Image/HeightField/Node(filename) calls More...

enum	PrecisionHint { FLOAT_PRECISION_ALL = 0, DOUBLE_PRECISION_VERTEX = 1<<0, DOUBLE_PRECISION_NORMAL = 1<<1, DOUBLE_PRECISION_COLOR = 1<<2, DOUBLE_PRECISION_SECONDARY_COLOR = 1<<3, DOUBLE_PRECISION_FOG_COORD = 1<<4, DOUBLE_PRECISION_TEX_COORD = 1<<5, DOUBLE_PRECISION_VERTEX_ATTRIB = 1<<6, DOUBLE_PRECISION_ALL }

enum	BuildKdTreesHint { NO_PREFERENCE, DO_NOT_BUILD_KDTREES, BUILD_KDTREES }
	range of options of whether to build kdtrees automatically on loading More...

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	ImageOptions ()

	ImageOptions (const std::string &str)

	ImageOptions (const ImageOptions &options, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgDB, ImageOptions)

void	init ()

Public Member Functions inherited from osgDB::Options
	Options ()

	Options (const std::string &str)

	Options (const Options &options, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgDB, Options)

Options *	cloneOptions (const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY) const

void	setOptionString (const std::string &str)

const std::string &	getOptionString () const

void	setDatabasePath (const std::string &str)

FilePathList &	getDatabasePathList ()

const FilePathList &	getDatabasePathList () const

void	setObjectCacheHint (CacheHintOptions useObjectCache)

CacheHintOptions	getObjectCacheHint () const

void	setObjectCache (ObjectCache *objectCache)

ObjectCache *	getObjectCache () const

void	setPrecisionHint (PrecisionHint hint)

PrecisionHint	getPrecisionHint () const

void	setBuildKdTreesHint (BuildKdTreesHint hint)

BuildKdTreesHint	getBuildKdTreesHint () const

void	setAuthenticationMap (AuthenticationMap *authenticationMap)

const AuthenticationMap *	getAuthenticationMap () const

void	setPluginData (const std::string &s, void *v) const

void *	getPluginData (const std::string &s)

const void *	getPluginData (const std::string &s) const

void	removePluginData (const std::string &s) const

unsigned int	getNumPluginData () const

void	setPluginStringData (const std::string &s, const std::string &v) const

std::string &	getPluginStringData (const std::string &s)

const std::string	getPluginStringData (const std::string &s) const

void	removePluginStringData (const std::string &s) const

unsigned int	getNumPluginStringData () const

void	parsePluginStringData (const std::string &str, char separator1=' ', char separator2='=')

void	setFindFileCallback (FindFileCallback *cb)

FindFileCallback *	getFindFileCallback () const

void	setReadFileCallback (ReadFileCallback *cb)

ReadFileCallback *	getReadFileCallback () const

void	setWriteFileCallback (WriteFileCallback *cb)

WriteFileCallback *	getWriteFileCallback () const

void	setFileLocationCallback (FileLocationCallback *cb)

FileLocationCallback *	getFileLocationCallback () const

void	setFileCache (FileCache *fileCache)

FileCache *	getFileCache () const

void	setTerrain (osg::observer_ptr< osg::Node > &terrain)

const osg::observer_ptr < osg::Node > &	getTerrain () const

void	setParentGroup (osg::observer_ptr< osg::Group > &parentGroup)

const osg::observer_ptr < osg::Group > &	getParentGroup () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Types inherited from osgDB::Options
typedef std::map< std::string, void * >	PluginDataMap

typedef std::map< std::string, std::string >	PluginStringDataMap

Protected Member Functions inherited from osgDB::Options
virtual	~Options ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osgDB::Options
std::string	_str

FilePathList	_databasePaths

CacheHintOptions	_objectCacheHint

osg::ref_ptr< ObjectCache >	_objectCache

PrecisionHint	_precisionHint

BuildKdTreesHint	_buildKdTreesHint

osg::ref_ptr< AuthenticationMap >	_authenticationMap

PluginDataMap	_pluginData

PluginStringDataMap	_pluginStringData

osg::ref_ptr< FindFileCallback >	_findFileCallback

osg::ref_ptr< ReadFileCallback >	_readFileCallback

osg::ref_ptr< WriteFileCallback >	_writeFileCallback

osg::ref_ptr < FileLocationCallback >	_fileLocationCallback

osg::ref_ptr< FileCache >	_fileCache

osg::observer_ptr< osg::Node >	_terrain

osg::observer_ptr< osg::Group >	_parentGroup

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

Definition at line 21 of file ImageOptions.h.

Member Enumeration Documentation

enum osgDB::ImageOptions::ImageSamplingMode

Enumerator
NEAREST
LINEAR
CUBIC

Definition at line 98 of file ImageOptions.h.

enum osgDB::ImageOptions::ImageWindowMode

Enumerator
ALL_IMAGE
RATIO_WINDOW
PIXEL_WINDOW

Definition at line 91 of file ImageOptions.h.

Constructor & Destructor Documentation

osgDB::ImageOptions::ImageOptions ( )

osgDB::ImageOptions::ImageOptions ( const std::string & str )

osgDB::ImageOptions::ImageOptions	(	const ImageOptions &	options,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 29 of file ImageOptions.h.

Member Function Documentation

void osgDB::ImageOptions::init ( )

osgDB::ImageOptions::META_Object	(	osgDB	,
		ImageOptions
	)

Member Data Documentation

GLenum osgDB::ImageOptions::_destinationDataType

Definition at line 139 of file ImageOptions.h.

osg::ref_ptr<osg::Image> osgDB::ImageOptions::_destinationImage

Definition at line 133 of file ImageOptions.h.

ImageWindowMode osgDB::ImageOptions::_destinationImageWindowMode

Definition at line 135 of file ImageOptions.h.

GLenum osgDB::ImageOptions::_destinationPixelFormat

Definition at line 140 of file ImageOptions.h.

PixelWindow osgDB::ImageOptions::_destinationPixelWindow

Definition at line 137 of file ImageOptions.h.

RatioWindow osgDB::ImageOptions::_destinationRatioWindow

Definition at line 136 of file ImageOptions.h.

ImageSamplingMode osgDB::ImageOptions::_sourceImageSamplingMode

Definition at line 127 of file ImageOptions.h.

ImageWindowMode osgDB::ImageOptions::_sourceImageWindowMode

Definition at line 128 of file ImageOptions.h.

PixelWindow osgDB::ImageOptions::_sourcePixelWindow

Definition at line 130 of file ImageOptions.h.

RatioWindow osgDB::ImageOptions::_sourceRatioWindow

Definition at line 129 of file ImageOptions.h.

The documentation for this class was generated from the following file:

osg_head/include/osgDB/ImageOptions.h

Public Attributes
ImageSamplingMode	_sourceImageSamplingMode

ImageWindowMode	_sourceImageWindowMode

RatioWindow	_sourceRatioWindow

PixelWindow	_sourcePixelWindow

osg::ref_ptr< osg::Image >	_destinationImage

ImageWindowMode	_destinationImageWindowMode

RatioWindow	_destinationRatioWindow

PixelWindow	_destinationPixelWindow

GLenum	_destinationDataType

GLenum	_destinationPixelFormat
