#include <IncrementalCompileOperation.h>

Inheritance diagram for osgUtil::IncrementalCompileOperation:

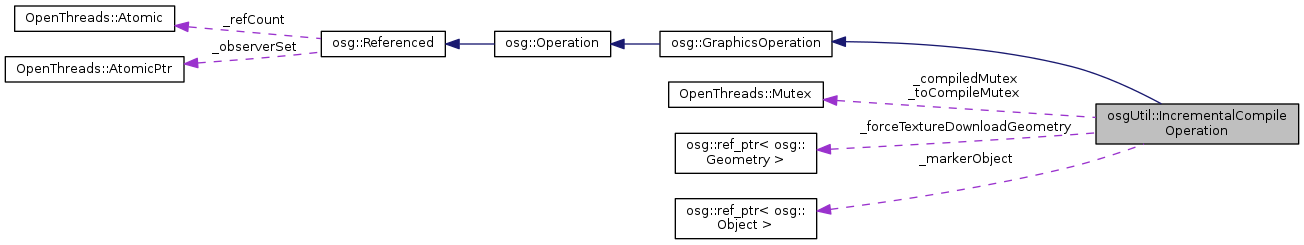

Collaboration diagram for osgUtil::IncrementalCompileOperation:

Classes
struct	CompileCompletedCallback

struct	CompileDrawableOp

struct	CompileInfo

class	CompileList

struct	CompileOp

struct	CompileProgramOp

class	CompileSet

struct	CompileTextureOp

Public Types
typedef std::vector < osg::GraphicsContext * >	Contexts

typedef std::set < osg::GraphicsContext * >	ContextSet

typedef std::list < osg::ref_ptr< CompileSet > >	CompileSets

Public Member Functions
	IncrementalCompileOperation ()

bool	isActive () const

bool	requiresCompile (StateToCompile &stateToCompile)

void	setTargetFrameRate (double tfr)

double	getTargetFrameRate () const

void	setMinimumTimeAvailableForGLCompileAndDeletePerFrame (double ta)

double	getMinimumTimeAvailableForGLCompileAndDeletePerFrame () const

void	setMaximumNumOfObjectsToCompilePerFrame (unsigned int num)

unsigned int	getMaximumNumOfObjectsToCompilePerFrame () const

void	setFlushTimeRatio (double ratio)

double	getFlushTimeRatio () const

void	setConservativeTimeRatio (double ratio)

double	getConservativeTimeRatio () const

void	assignForceTextureDownloadGeometry ()

void	setForceTextureDownloadGeometry (osg::Geometry *geom)

osg::Geometry *	getForceTextureDownloadGeometry ()

const osg::Geometry *	getForceTextureDownloadGeometry () const

void	assignContexts (Contexts &contexts)

void	removeContexts (Contexts &contexts)

void	addGraphicsContext (osg::GraphicsContext *gc)

void	removeGraphicsContext (osg::GraphicsContext *gc)

ContextSet &	getContextSet ()

const ContextSet &	getContextSet () const

void	mergeCompiledSubgraphs (const osg::FrameStamp *frameStamp)

void	setCurrentFrameNumber (unsigned int fn)

unsigned int	getCurrentFrameNumber () const

void	compileAllForNextFrame (unsigned int numFramesToDoCompileAll=1)

void	setCompileAllTillFrameNumber (unsigned int fn)

unsigned int	getCompileAllTillFrameNumber () const

virtual void	operator() (osg::GraphicsContext *context)

void	add (osg::Node *subgraphToCompile)

void	add (osg::Group attachmentPoint, osg::Node subgraphToCompile)

void	add (CompileSet *compileSet, bool callBuildCompileMap=true)

void	remove (CompileSet *compileSet)

OpenThreads::Mutex *	getToCompiledMutex ()

CompileSets &	getToCompile ()

OpenThreads::Mutex *	getCompiledMutex ()

CompileSets &	getCompiled ()

void	setMarkerObject (osg::Object *mo)

osg::Object *	getMarkerObject ()

const osg::Object *	getMarkerObject () const

Public Member Functions inherited from osg::GraphicsOperation
	GraphicsOperation (const std::string &name, bool keep)

virtual void	operator() (Object *object)

Public Member Functions inherited from osg::Operation
	Operation (const std::string &name, bool keep)

void	setName (const std::string &name)

const std::string &	getName () const

void	setKeep (bool keep)

bool	getKeep () const

virtual void	release ()

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

virtual void	setThreadSafeRefUnref (bool threadSafe)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~IncrementalCompileOperation ()

void	compileSets (CompileSets &toCompile, CompileInfo &compileInfo)

Protected Member Functions inherited from osg::Operation
	Operation ()

	Operation (const Operation &op)

virtual	~Operation ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
double	_targetFrameRate

double	_minimumTimeAvailableForGLCompileAndDeletePerFrame

unsigned int	_maximumNumOfObjectsToCompilePerFrame

double	_flushTimeRatio

double	_conservativeTimeRatio

unsigned int	_currentFrameNumber

unsigned int	_compileAllTillFrameNumber

osg::ref_ptr< osg::Geometry >	_forceTextureDownloadGeometry

OpenThreads::Mutex	_toCompileMutex

CompileSets	_toCompile

OpenThreads::Mutex	_compiledMutex

CompileSets	_compiled

ContextSet	_contexts

osg::ref_ptr< osg::Object >	_markerObject

Protected Attributes inherited from osg::Operation
std::string	_name

bool	_keep

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Definition at line 55 of file IncrementalCompileOperation.h.

Member Typedef Documentation

typedef std::list< osg::ref_ptr<CompileSet> > osgUtil::IncrementalCompileOperation::CompileSets

Definition at line 274 of file IncrementalCompileOperation.h.

typedef std::vector<osg::GraphicsContext*> osgUtil::IncrementalCompileOperation::Contexts

Definition at line 124 of file IncrementalCompileOperation.h.

typedef std::set<osg::GraphicsContext*> osgUtil::IncrementalCompileOperation::ContextSet

Definition at line 131 of file IncrementalCompileOperation.h.

Constructor & Destructor Documentation

osgUtil::IncrementalCompileOperation::IncrementalCompileOperation ( )

virtual osgUtil::IncrementalCompileOperation::~IncrementalCompileOperation ( )

protectedvirtual

Member Function Documentation

void osgUtil::IncrementalCompileOperation::add ( osg::Node * subgraphToCompile )

Add a subgraph to be compiled.

void osgUtil::IncrementalCompileOperation::add	(	osg::Group *	attachmentPoint,
		osg::Node *	subgraphToCompile
	)

Add a subgraph to be compiled and add automatically to attachPoint on call to mergeCompiledSubgraphs.

void osgUtil::IncrementalCompileOperation::add	(	CompileSet *	compileSet,
		bool	callBuildCompileMap = `true`
	)

Add a CompileSet to be compiled.

void osgUtil::IncrementalCompileOperation::addGraphicsContext ( osg::GraphicsContext * gc )

void osgUtil::IncrementalCompileOperation::assignContexts ( Contexts & contexts )

void osgUtil::IncrementalCompileOperation::assignForceTextureDownloadGeometry ( )

Assign a geometry and associated StateSet than is applied after each texture compile to atttempt to force the OpenGL drive to download the texture object to OpenGL graphics card.

void osgUtil::IncrementalCompileOperation::compileAllForNextFrame ( unsigned int numFramesToDoCompileAll = 1 )

tell the IncrementalCompileOperation to compile all pending objects during next draw traversal, for specified number of frames.

void osgUtil::IncrementalCompileOperation::compileSets	(	CompileSets &	toCompile,
		CompileInfo &	compileInfo
	)

protected

unsigned int osgUtil::IncrementalCompileOperation::getCompileAllTillFrameNumber ( ) const

inline

Definition at line 153 of file IncrementalCompileOperation.h.

CompileSets& osgUtil::IncrementalCompileOperation::getCompiled ( )

inline

Definition at line 292 of file IncrementalCompileOperation.h.

OpenThreads::Mutex* osgUtil::IncrementalCompileOperation::getCompiledMutex ( )

inline

Definition at line 291 of file IncrementalCompileOperation.h.

double osgUtil::IncrementalCompileOperation::getConservativeTimeRatio ( ) const

inline

Definition at line 112 of file IncrementalCompileOperation.h.

ContextSet& osgUtil::IncrementalCompileOperation::getContextSet ( )

inline

Definition at line 132 of file IncrementalCompileOperation.h.

const ContextSet& osgUtil::IncrementalCompileOperation::getContextSet ( ) const

inline

Definition at line 133 of file IncrementalCompileOperation.h.

unsigned int osgUtil::IncrementalCompileOperation::getCurrentFrameNumber ( ) const

inline

Definition at line 144 of file IncrementalCompileOperation.h.

double osgUtil::IncrementalCompileOperation::getFlushTimeRatio ( ) const

inline

Definition at line 105 of file IncrementalCompileOperation.h.

osg::Geometry* osgUtil::IncrementalCompileOperation::getForceTextureDownloadGeometry ( )

inline

Definition at line 121 of file IncrementalCompileOperation.h.

const osg::Geometry* osgUtil::IncrementalCompileOperation::getForceTextureDownloadGeometry ( ) const

inline

Definition at line 122 of file IncrementalCompileOperation.h.

osg::Object* osgUtil::IncrementalCompileOperation::getMarkerObject ( )

inline

Definition at line 295 of file IncrementalCompileOperation.h.

const osg::Object* osgUtil::IncrementalCompileOperation::getMarkerObject ( ) const

inline

Definition at line 296 of file IncrementalCompileOperation.h.

unsigned int osgUtil::IncrementalCompileOperation::getMaximumNumOfObjectsToCompilePerFrame ( ) const

inline

Get the maximum number of OpenGL objects that the page should attempt to compile per frame.

Definition at line 99 of file IncrementalCompileOperation.h.

double osgUtil::IncrementalCompileOperation::getMinimumTimeAvailableForGLCompileAndDeletePerFrame ( ) const

inline

Get the minimum amount of time that should be made available for compiling and delete OpenGL objects per frame. For usage see notes in setTargetFrameRate.

Definition at line 91 of file IncrementalCompileOperation.h.

double osgUtil::IncrementalCompileOperation::getTargetFrameRate ( ) const

inline

Get the target frame rate that the IncrementalCompileOperation should assume.

Definition at line 82 of file IncrementalCompileOperation.h.

CompileSets& osgUtil::IncrementalCompileOperation::getToCompile ( )

inline

Definition at line 289 of file IncrementalCompileOperation.h.

OpenThreads::Mutex* osgUtil::IncrementalCompileOperation::getToCompiledMutex ( )

inline

Definition at line 288 of file IncrementalCompileOperation.h.

bool osgUtil::IncrementalCompileOperation::isActive ( ) const

inline

Return true if the IncrementCompileOperation is active.

Definition at line 62 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::mergeCompiledSubgraphs ( const osg::FrameStamp * frameStamp )

Merge subgraphs that have been compiled.

virtual void osgUtil::IncrementalCompileOperation::operator() ( osg::GraphicsContext * context )

virtual

Implements osg::GraphicsOperation.

void osgUtil::IncrementalCompileOperation::remove ( CompileSet * compileSet )

Remove CompileSet from list.

void osgUtil::IncrementalCompileOperation::removeContexts ( Contexts & contexts )

void osgUtil::IncrementalCompileOperation::removeGraphicsContext ( osg::GraphicsContext * gc )

bool osgUtil::IncrementalCompileOperation::requiresCompile ( StateToCompile & stateToCompile )

void osgUtil::IncrementalCompileOperation::setCompileAllTillFrameNumber ( unsigned int fn )

inline

tell the IncrementalCompileOperation to compile all pending objects during next draw traversal, till specified frame number.

Definition at line 152 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setConservativeTimeRatio ( double ratio )

inline

ConservativeTimeRatio governs how much of the measured spare time in each frame is used for flushing deleted and compile new OpenGL objects. Default value is 0.5, valid range is 0.1 to 1.0. A ratio near 1.0 will lead to paged databases being compiled and merged quicker but increase the chances of frame drop. A ratio near 0.1 will lead to paged databases being compiled and merged closer but reduse the chances of frame drop.

Definition at line 111 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setCurrentFrameNumber ( unsigned int fn )

inline

Set the current frame number that the IncrementalCompileOperation should use as a reference value for calculations based on current frame number. Note, this value is set by the mergeCompiledSubgraphs(..) method so one won't normally need to call set the CurrentFrameNumber manually.

Definition at line 143 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setFlushTimeRatio ( double ratio )

inline

FlushTimeRatio governs how much of the spare time in each frame is used for flushing deleted OpenGL objects. Default value is 0.5, valid range is 0.1 to 0.9.

Definition at line 104 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setForceTextureDownloadGeometry ( osg::Geometry * geom )

inline

Set the osg::Geometry to apply after each texture compile to atttempt to force the OpenGL drive to download the texture object to OpenGL graphics card.

Definition at line 120 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setMarkerObject ( osg::Object * mo )

inline

Definition at line 294 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setMaximumNumOfObjectsToCompilePerFrame ( unsigned int num )

inline

Set the maximum number of OpenGL objects that the page should attempt to compile per frame. Note, Lower values reduces chances of a frame drop but lower the rate that database will be paged in at. Default value is 8.

Definition at line 96 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setMinimumTimeAvailableForGLCompileAndDeletePerFrame ( double ta )

inline

Set the minimum amount of time (in seconds) that should be made available for compiling and delete OpenGL objects per frame. Default value is 0.001 (1 millisecond). For usage see notes in setTargetFrameRate.

Definition at line 87 of file IncrementalCompileOperation.h.

void osgUtil::IncrementalCompileOperation::setTargetFrameRate ( double tfr )

inline

Set the target frame rate that the IncrementalCompileOperation should assume. Typically one would set this to the value refresh rate of your display system i.e. 60Hz. Default value is 100. Usage notes. The TargetFrameRate and the MinimumTimeAvailableForGLCompileAndDeletePerFrame parameters are not directly used by IncrementalCompileOperation, but are should be used as a guide for how long to set aside per frame for compiling and deleting OpenGL objects. The longer amount of time to set aside the faster databases will be paged in but with increased chance of frame drops, the lower the amount of time the set aside the slower databases will paged it but with better chance of avoid any frame drops. The default values are chosen to achieve the later when running on a modern mid to high end PC. The way to compute the amount of available time use a scheme such as : availableTime = maximum(1.0/targetFrameRate - timeTakenDuringUpdateCullAndDraw, minimumTimeAvailableForGLCompileAndDeletePerFrame).

Definition at line 79 of file IncrementalCompileOperation.h.
