osg::CullingSet Class Reference

#include <CullingSet.h>

Inheritance diagram for osg::CullingSet:

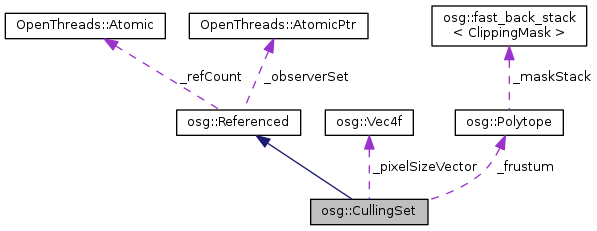

Collaboration diagram for osg::CullingSet:

Public Types
enum	MaskValues {   NO_CULLING = 0x0, VIEW_FRUSTUM_SIDES_CULLING = 0x1, NEAR_PLANE_CULLING = 0x2, FAR_PLANE_CULLING = 0x4,   VIEW_FRUSTUM_CULLING, SMALL_FEATURE_CULLING = 0x8, SHADOW_OCCLUSION_CULLING = 0x10, DEFAULT_CULLING,   ENABLE_ALL_CULLING }
typedef std::pair < osg::ref_ptr< osg::StateSet > , osg::Polytope >	StateFrustumPair
typedef std::vector < StateFrustumPair >	StateFrustumList
typedef std::vector < ShadowVolumeOccluder >	OccluderList
typedef int	Mask

Public Member Functions
	CullingSet ()
	CullingSet (const CullingSet &cs)
	CullingSet (const CullingSet &cs, const Matrix &matrix, const Vec4 &pixelSizeVector)
CullingSet &	operator= (const CullingSet &cs)
void	set (const CullingSet &cs)
void	set (const CullingSet &cs, const Matrix &matrix, const Vec4 &pixelSizeVector)
void	setCullingMask (Mask mask)
Mask	getCullingMask () const
void	setFrustum (Polytope &cv)
Polytope &	getFrustum ()
const Polytope &	getFrustum () const
void	addStateFrustum (StateSet *stateset, Polytope &polytope)
void	getStateFrustumList (StateFrustumList &sfl)
StateFrustumList &	getStateFrustumList ()
void	addOccluder (ShadowVolumeOccluder &cv)
void	setPixelSizeVector (const Vec4 &v)
Vec4 &	getPixelSizeVector ()
const Vec4 &	getPixelSizeVector () const
void	setSmallFeatureCullingPixelSize (float value)
float &	getSmallFeatureCullingPixelSize ()
float	getSmallFeatureCullingPixelSize () const
float	pixelSize (const Vec3 &v, float radius) const
float	pixelSize (const BoundingSphere &bs) const
float	clampedPixelSize (const Vec3 &v, float radius) const
float	clampedPixelSize (const BoundingSphere &bs) const
bool	isCulled (const std::vector< Vec3 > &vertices)
bool	isCulled (const BoundingBox &bb)
bool	isCulled (const BoundingSphere &bs)
void	pushCurrentMask ()
void	popCurrentMask ()
void	resetCullingMask ()
void	disableAndPushOccludersCurrentMask (NodePath &nodePath)
void	popOccludersCurrentMask (NodePath &nodePath)
virtual	~CullingSet ()
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Static Public Member Functions
static osg::Vec4	computePixelSizeVector (const Viewport &W, const Matrix &P, const Matrix &M)
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Protected Attributes
Mask	_mask
Polytope	_frustum
StateFrustumList	_stateFrustumList
OccluderList	_occluderList
Vec4	_pixelSizeVector
float	_smallFeatureCullingPixelSize
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Detailed Description

A CullingSet class which contains a frustum and a list of occluders.

Definition at line 29 of file CullingSet.h.

Member Typedef Documentation

typedef int osg::CullingSet::Mask

Definition at line 123 of file CullingSet.h.

typedef std::vector<ShadowVolumeOccluder> osg::CullingSet::OccluderList

Definition at line 121 of file CullingSet.h.

typedef std::vector< StateFrustumPair > osg::CullingSet::StateFrustumList

Definition at line 35 of file CullingSet.h.

typedef std::pair< osg::ref_ptr<osg::StateSet>, osg::Polytope > osg::CullingSet::StateFrustumPair

Definition at line 34 of file CullingSet.h.

Member Enumeration Documentation

enum osg::CullingSet::MaskValues

Enumerator
NO_CULLING
VIEW_FRUSTUM_SIDES_CULLING
NEAR_PLANE_CULLING
FAR_PLANE_CULLING
VIEW_FRUSTUM_CULLING
SMALL_FEATURE_CULLING
SHADOW_OCCLUSION_CULLING
DEFAULT_CULLING
ENABLE_ALL_CULLING

Definition at line 125 of file CullingSet.h.

Constructor & Destructor Documentation

osg::CullingSet::CullingSet

(

)

osg::CullingSet::CullingSet ( const CullingSet &  cs )

inline

Definition at line 39 of file CullingSet.h.

osg::CullingSet::CullingSet ( const CullingSet &  cs, const Matrix &  matrix, const Vec4 &  pixelSizeVector  )

inline

Definition at line 50 of file CullingSet.h.

virtual osg::CullingSet::~CullingSet ( )

virtual

Member Function Documentation

void osg::CullingSet::addOccluder ( ShadowVolumeOccluder &  cv )

inline

Definition at line 157 of file CullingSet.h.

void osg::CullingSet::addStateFrustum ( StateSet *  stateset, Polytope &  polytope  )

inline

Definition at line 152 of file CullingSet.h.

float osg::CullingSet::clampedPixelSize ( const Vec3 &  v, float  radius  ) const

inline

Compute the pixel of an object at position v, with specified radius. fabs()ed to always be positive.

Definition at line 180 of file CullingSet.h.

float osg::CullingSet::clampedPixelSize ( const BoundingSphere &  bs ) const

inline

Compute the pixel of a bounding sphere. fabs()ed to always be positive.

Definition at line 183 of file CullingSet.h.

static osg::Vec4 osg::CullingSet::computePixelSizeVector ( const Viewport &  W, const Matrix &  P, const Matrix &  M  )

static

void osg::CullingSet::disableAndPushOccludersCurrentMask

(

NodePath &

nodePath

)

Mask osg::CullingSet::getCullingMask ( ) const

inline

Definition at line 145 of file CullingSet.h.

Polytope& osg::CullingSet::getFrustum ( )

inline

Definition at line 149 of file CullingSet.h.

const Polytope& osg::CullingSet::getFrustum ( ) const

inline

Definition at line 150 of file CullingSet.h.

Vec4& osg::CullingSet::getPixelSizeVector ( )

inline

Definition at line 161 of file CullingSet.h.

const Vec4& osg::CullingSet::getPixelSizeVector ( ) const

inline

Definition at line 162 of file CullingSet.h.

float& osg::CullingSet::getSmallFeatureCullingPixelSize ( )

inline

Definition at line 168 of file CullingSet.h.

float osg::CullingSet::getSmallFeatureCullingPixelSize ( ) const

inline

Definition at line 170 of file CullingSet.h.

void osg::CullingSet::getStateFrustumList ( StateFrustumList &  sfl )

inline

Definition at line 154 of file CullingSet.h.

StateFrustumList& osg::CullingSet::getStateFrustumList ( )

inline

Definition at line 155 of file CullingSet.h.

bool osg::CullingSet::isCulled ( const std::vector< Vec3 > &  vertices )

inline

Definition at line 186 of file CullingSet.h.

bool osg::CullingSet::isCulled ( const BoundingBox &  bb )

inline

Definition at line 215 of file CullingSet.h.

bool osg::CullingSet::isCulled ( const BoundingSphere &  bs )

inline

Definition at line 244 of file CullingSet.h.

Here is the call graph for this function:

CullingSet& osg::CullingSet::operator= ( const CullingSet &  cs )

inline

Definition at line 67 of file CullingSet.h.

float osg::CullingSet::pixelSize ( const Vec3 &  v, float  radius  ) const

inline

Compute the pixel of an object at position v, with specified radius.

Definition at line 174 of file CullingSet.h.

float osg::CullingSet::pixelSize ( const BoundingSphere &  bs ) const

inline

Compute the pixel of a bounding sphere.

Definition at line 177 of file CullingSet.h.

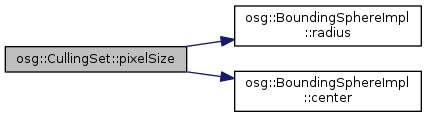

Here is the call graph for this function:

void osg::CullingSet::popCurrentMask ( )

inline

Definition at line 309 of file CullingSet.h.

void osg::CullingSet::popOccludersCurrentMask

(

NodePath &

nodePath

)

void osg::CullingSet::pushCurrentMask ( )

inline

Definition at line 281 of file CullingSet.h.

void osg::CullingSet::resetCullingMask ( )

inline

Definition at line 336 of file CullingSet.h.

void osg::CullingSet::set ( const CullingSet &  cs )

inline

Definition at line 82 of file CullingSet.h.

void osg::CullingSet::set ( const CullingSet &  cs, const Matrix &  matrix, const Vec4 &  pixelSizeVector  )

inline

Definition at line 92 of file CullingSet.h.

void osg::CullingSet::setCullingMask ( Mask  mask )

inline

Definition at line 144 of file CullingSet.h.

void osg::CullingSet::setFrustum ( Polytope &  cv )

inline

Definition at line 147 of file CullingSet.h.

void osg::CullingSet::setPixelSizeVector ( const Vec4 &  v )

inline

Definition at line 159 of file CullingSet.h.

void osg::CullingSet::setSmallFeatureCullingPixelSize ( float  value )

inline

Threshold at which small features are culled.

Parameters

value

Bounding volume size in screen space. Default is 2.0.

Definition at line 166 of file CullingSet.h.

Member Data Documentation

Polytope osg::CullingSet::_frustum

protected

Definition at line 354 of file CullingSet.h.

Mask osg::CullingSet::_mask

protected

Definition at line 353 of file CullingSet.h.

OccluderList osg::CullingSet::_occluderList

protected

Definition at line 356 of file CullingSet.h.

Vec4 osg::CullingSet::_pixelSizeVector

protected

Definition at line 357 of file CullingSet.h.

float osg::CullingSet::_smallFeatureCullingPixelSize

protected

Definition at line 358 of file CullingSet.h.

StateFrustumList osg::CullingSet::_stateFrustumList

protected

Definition at line 355 of file CullingSet.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/CullingSet.h
