#include <Polytope.h>

Collaboration diagram for osg::Polytope:

Public Types
typedef unsigned int	ClippingMask

typedef std::vector< Plane >	PlaneList

typedef std::vector< Vec3 >	VertexList

typedef fast_back_stack < ClippingMask >	MaskStack

Public Member Functions
	Polytope ()

	Polytope (const Polytope &cv)

	Polytope (const PlaneList &pl)

	~Polytope ()

void	clear ()

Polytope &	operator= (const Polytope &cv)

void	setToUnitFrustum (bool withNear=true, bool withFar=true)

void	setToBoundingBox (const BoundingBox &bb)

void	setAndTransformProvidingInverse (const Polytope &pt, const osg::Matrix &matrix)

void	set (const PlaneList &pl)

void	add (const osg::Plane &pl)

void	flip ()

bool	empty () const

PlaneList &	getPlaneList ()

const PlaneList &	getPlaneList () const

void	setReferenceVertexList (VertexList &vertices)

VertexList &	getReferenceVertexList ()

const VertexList &	getReferenceVertexList () const

void	setupMask ()

ClippingMask &	getCurrentMask ()

ClippingMask	getCurrentMask () const

void	setResultMask (ClippingMask mask)

ClippingMask	getResultMask () const

MaskStack &	getMaskStack ()

const MaskStack &	getMaskStack () const

void	pushCurrentMask ()

void	popCurrentMask ()

bool	contains (const osg::Vec3 &v) const

bool	contains (const std::vector< Vec3 > &vertices)

bool	contains (const osg::BoundingSphere &bs)

bool	contains (const osg::BoundingBox &bb)

bool	containsAllOf (const std::vector< Vec3 > &vertices)

bool	containsAllOf (const osg::BoundingSphere &bs)

bool	containsAllOf (const osg::BoundingBox &bb)

void	transform (const osg::Matrix &matrix)

void	transformProvidingInverse (const osg::Matrix &matrix)

Protected Attributes
MaskStack	_maskStack

ClippingMask	_resultMask

PlaneList	_planeList

VertexList	_referenceVertexList

Detailed Description

A Polytope class for representing convex clipping volumes made up of a set of planes. When adding planes, their normals should point inwards (into the volume)

Definition at line 25 of file Polytope.h.

Member Typedef Documentation

typedef unsigned int osg::Polytope::ClippingMask

Definition at line 30 of file Polytope.h.

typedef fast_back_stack<ClippingMask> osg::Polytope::MaskStack

Definition at line 33 of file Polytope.h.

typedef std::vector<Plane> osg::Polytope::PlaneList

Definition at line 31 of file Polytope.h.

typedef std::vector<Vec3> osg::Polytope::VertexList

Definition at line 32 of file Polytope.h.

Constructor & Destructor Documentation

osg::Polytope::Polytope ( )

inline

Definition at line 35 of file Polytope.h.

osg::Polytope::Polytope ( const Polytope & cv )

inline

Definition at line 37 of file Polytope.h.

osg::Polytope::Polytope ( const PlaneList & pl )

inline

Definition at line 43 of file Polytope.h.

osg::Polytope::~Polytope ( )

inline

Definition at line 45 of file Polytope.h.

Member Function Documentation

void osg::Polytope::add ( const osg::Plane & pl )

inline

Definition at line 135 of file Polytope.h.

void osg::Polytope::clear ( )

inline

Definition at line 47 of file Polytope.h.

bool osg::Polytope::contains ( const osg::Vec3 & v ) const

inline

Check whether a vertex is contained within clipping set.

Definition at line 196 of file Polytope.h.

bool osg::Polytope::contains ( const std::vector< Vec3 > & vertices )

inline

Check whether any part of vertex list is contained within clipping set.

Definition at line 212 of file Polytope.h.

bool osg::Polytope::contains ( const osg::BoundingSphere & bs )

inline

Check whether any part of a bounding sphere is contained within clipping set. Using a mask to determine which planes should be used for the check, and modifying the mask to turn off planes which wouldn't contribute to clipping of any internal objects. This feature is used in osgUtil::CullVisitor to prevent redundant plane checking.

Definition at line 243 of file Polytope.h.

bool osg::Polytope::contains ( const osg::BoundingBox & bb )

inline

Check whether any part of a bounding box is contained within clipping set. Using a mask to determine which planes should be used for the check, and modifying the mask to turn off planes which wouldn't contribute to clipping of any internal objects. This feature is used in osgUtil::CullVisitor to prevent redundant plane checking.

Definition at line 270 of file Polytope.h.

bool osg::Polytope::containsAllOf ( const std::vector< Vec3 > & vertices )

inline

Check whether all of vertex list is contained with clipping set.

Definition at line 293 of file Polytope.h.

bool osg::Polytope::containsAllOf ( const osg::BoundingSphere & bs )

inline

Check whether the entire bounding sphere is contained within clipping set.

Definition at line 316 of file Polytope.h.

bool osg::Polytope::containsAllOf ( const osg::BoundingBox & bb )

inline

Check whether the entire bounding box is contained within clipping set.

Definition at line 339 of file Polytope.h.

bool osg::Polytope::empty ( ) const

inline

Definition at line 148 of file Polytope.h.

void osg::Polytope::flip ( )

inline

flip/reverse the orientation of all the planes.

Definition at line 138 of file Polytope.h.

ClippingMask& osg::Polytope::getCurrentMask ( )

inline

Definition at line 172 of file Polytope.h.

ClippingMask osg::Polytope::getCurrentMask ( ) const

inline

Definition at line 174 of file Polytope.h.

MaskStack& osg::Polytope::getMaskStack ( )

inline

Definition at line 180 of file Polytope.h.

const MaskStack& osg::Polytope::getMaskStack ( ) const

inline

Definition at line 182 of file Polytope.h.

PlaneList& osg::Polytope::getPlaneList ( )

inline

Definition at line 150 of file Polytope.h.

Here is the caller graph for this function:

const PlaneList& osg::Polytope::getPlaneList ( ) const

inline

Definition at line 152 of file Polytope.h.

VertexList& osg::Polytope::getReferenceVertexList ( )

inline

Definition at line 157 of file Polytope.h.

const VertexList& osg::Polytope::getReferenceVertexList ( ) const

inline

Definition at line 159 of file Polytope.h.

ClippingMask osg::Polytope::getResultMask ( ) const

inline

Definition at line 178 of file Polytope.h.

Here is the caller graph for this function:

Polytope& osg::Polytope::operator= ( const Polytope & cv )

inline

Definition at line 49 of file Polytope.h.

void osg::Polytope::popCurrentMask ( )

inline

Definition at line 190 of file Polytope.h.

Here is the caller graph for this function:

void osg::Polytope::pushCurrentMask ( )

inline

Definition at line 185 of file Polytope.h.

Here is the caller graph for this function:

void osg::Polytope::set ( const PlaneList & pl )

inline

Definition at line 132 of file Polytope.h.

void osg::Polytope::setAndTransformProvidingInverse	(	const Polytope &	pt,
		const osg::Matrix &	matrix
	)

inline

Definition at line 85 of file Polytope.h.

Here is the call graph for this function:

void osg::Polytope::setReferenceVertexList ( VertexList & vertices )

inline

Definition at line 155 of file Polytope.h.

void osg::Polytope::setResultMask ( ClippingMask mask )

inline

Definition at line 176 of file Polytope.h.

Here is the caller graph for this function:

void osg::Polytope::setToBoundingBox ( const BoundingBox & bb )

inline

Create a Polytope which is a equivalent to BoundingBox.

Definition at line 73 of file Polytope.h.

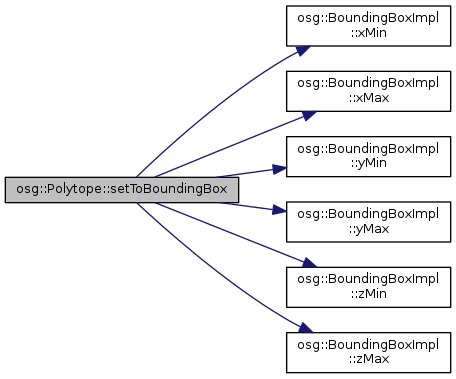

Here is the call graph for this function:

void osg::Polytope::setToUnitFrustum	(	bool	withNear = `true`,
		bool	withFar = `true`
	)

inline

Create a Polytope which is a cube, centered at 0,0,0, with sides of 2 units.

Definition at line 60 of file Polytope.h.

void osg::Polytope::setupMask ( )

inline

Definition at line 162 of file Polytope.h.

void osg::Polytope::transform ( const osg::Matrix & matrix )

inline

Transform the clipping set by matrix. Note, this operations carries out the calculation of the inverse of the matrix since a plane must be multiplied by the inverse transposed to transform it. This makes this operation expensive. If the inverse has been already calculated elsewhere then use transformProvidingInverse() instead. See http://www.worldserver.com/turk/computergraphics/NormalTransformations.pdf

Definition at line 368 of file Polytope.h.

Here is the call graph for this function:

void osg::Polytope::transformProvidingInverse ( const osg::Matrix & matrix )

inline

Transform the clipping set by provide a pre inverted matrix. see transform for details.

Definition at line 377 of file Polytope.h.

Member Data Documentation

MaskStack osg::Polytope::_maskStack

protected

Definition at line 398 of file Polytope.h.

PlaneList osg::Polytope::_planeList

protected

Definition at line 400 of file Polytope.h.

VertexList osg::Polytope::_referenceVertexList

protected

Definition at line 401 of file Polytope.h.

ClippingMask osg::Polytope::_resultMask

protected

Definition at line 399 of file Polytope.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/Polytope.h
