#include <VolumeSettings.h>

Inheritance diagram for osgVolume::VolumeSettings:

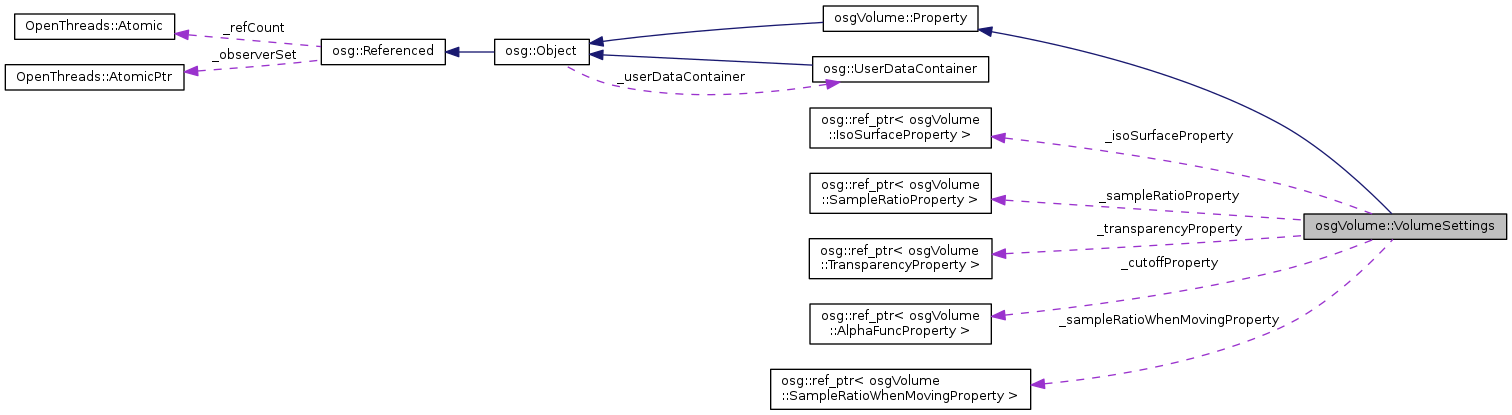

Collaboration diagram for osgVolume::VolumeSettings:

Public Types
enum	Technique { FixedFunction, RayTraced, MultiPass }

enum	ShadingModel { Standard, Light, Isosurface, MaximumIntensityProjection }

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	VolumeSettings ()

	VolumeSettings (const VolumeSettings &, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgVolume, VolumeSettings)

virtual void	accept (PropertyVisitor &pv)

virtual void	traverse (PropertyVisitor &pv)

void	setFilename (const std::string &str)

const std::string &	getFilename () const

void	setTechnique (Technique technique)

Technique	getTechnique () const

void	setShadingModel (ShadingModel sm)

ShadingModel	getShadingModel () const

void	setSampleRatio (float sr)

float	getSampleRatio () const

void	setSampleRatioWhenMoving (float sr)

float	getSampleRatioWhenMoving () const

void	setCutoff (float co)

float	getCutoff () const

void	setTransparency (float t)

float	getTransparency () const

SampleRatioProperty *	getSampleRatioProperty ()

const SampleRatioProperty *	getSampleRatioProperty () const

SampleRatioWhenMovingProperty *	getSampleRatioWhenMovingProperty ()

const SampleRatioWhenMovingProperty *	getSampleRatioWhenMovingProperty () const

AlphaFuncProperty *	getCutoffProperty ()

const AlphaFuncProperty *	getCutoffProperty () const

TransparencyProperty *	getTransparencyProperty ()

const TransparencyProperty *	getTransparencyProperty () const

IsoSurfaceProperty *	getIsoSurfaceProperty ()

const IsoSurfaceProperty *	getIsoSurfaceProperty () const

Public Member Functions inherited from osgVolume::Property
	Property ()

	Property (const Property &, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgVolume, Property)

void	dirty ()

void	setModifiedCount (unsigned int c)

unsigned int	getModifiedCount () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~VolumeSettings ()

Protected Member Functions inherited from osgVolume::Property
virtual	~Property ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
std::string	_filename

Technique	_technique

ShadingModel	_shadingModel

osg::ref_ptr< SampleRatioProperty >	_sampleRatioProperty

osg::ref_ptr < SampleRatioWhenMovingProperty >	_sampleRatioWhenMovingProperty

osg::ref_ptr< AlphaFuncProperty >	_cutoffProperty

osg::ref_ptr < TransparencyProperty >	_transparencyProperty

osg::ref_ptr< IsoSurfaceProperty >	_isoSurfaceProperty

Protected Attributes inherited from osgVolume::Property
unsigned int	_modifiedCount

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Definition at line 22 of file VolumeSettings.h.

Member Enumeration Documentation

enum osgVolume::VolumeSettings::ShadingModel

Enumerator
Standard
Light
Isosurface
MaximumIntensityProjection

Definition at line 49 of file VolumeSettings.h.

enum osgVolume::VolumeSettings::Technique

Enumerator
FixedFunction
RayTraced
MultiPass

Definition at line 39 of file VolumeSettings.h.

Constructor & Destructor Documentation

osgVolume::VolumeSettings::VolumeSettings ( )

osgVolume::VolumeSettings::VolumeSettings	(	const VolumeSettings &	,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osgVolume::VolumeSettings::~VolumeSettings ( )

inlineprotectedvirtual

Definition at line 90 of file VolumeSettings.h.

Member Function Documentation

virtual void osgVolume::VolumeSettings::accept ( PropertyVisitor & pv )

virtual

Reimplemented from osgVolume::Property.

float osgVolume::VolumeSettings::getCutoff ( ) const

inline

Definition at line 67 of file VolumeSettings.h.

AlphaFuncProperty* osgVolume::VolumeSettings::getCutoffProperty ( )

inline

Definition at line 79 of file VolumeSettings.h.

const AlphaFuncProperty* osgVolume::VolumeSettings::getCutoffProperty ( ) const

inline

Definition at line 80 of file VolumeSettings.h.

const std::string& osgVolume::VolumeSettings::getFilename ( ) const

inline

Definition at line 37 of file VolumeSettings.h.

IsoSurfaceProperty* osgVolume::VolumeSettings::getIsoSurfaceProperty ( )

inline

Definition at line 85 of file VolumeSettings.h.

const IsoSurfaceProperty* osgVolume::VolumeSettings::getIsoSurfaceProperty ( ) const

inline

Definition at line 86 of file VolumeSettings.h.

float osgVolume::VolumeSettings::getSampleRatio ( ) const

inline

Definition at line 61 of file VolumeSettings.h.

SampleRatioProperty* osgVolume::VolumeSettings::getSampleRatioProperty ( )

inline

Definition at line 73 of file VolumeSettings.h.

const SampleRatioProperty* osgVolume::VolumeSettings::getSampleRatioProperty ( ) const

inline

Definition at line 74 of file VolumeSettings.h.

float osgVolume::VolumeSettings::getSampleRatioWhenMoving ( ) const

inline

Definition at line 64 of file VolumeSettings.h.

SampleRatioWhenMovingProperty* osgVolume::VolumeSettings::getSampleRatioWhenMovingProperty ( )

inline

Definition at line 76 of file VolumeSettings.h.

const SampleRatioWhenMovingProperty* osgVolume::VolumeSettings::getSampleRatioWhenMovingProperty ( ) const

inline

Definition at line 77 of file VolumeSettings.h.

ShadingModel osgVolume::VolumeSettings::getShadingModel ( ) const

inline

Definition at line 58 of file VolumeSettings.h.

Technique osgVolume::VolumeSettings::getTechnique ( ) const

inline

Definition at line 47 of file VolumeSettings.h.

float osgVolume::VolumeSettings::getTransparency ( ) const

inline

Definition at line 70 of file VolumeSettings.h.

TransparencyProperty* osgVolume::VolumeSettings::getTransparencyProperty ( )

inline

Definition at line 82 of file VolumeSettings.h.

const TransparencyProperty* osgVolume::VolumeSettings::getTransparencyProperty ( ) const

inline

Definition at line 83 of file VolumeSettings.h.

osgVolume::VolumeSettings::META_Object	(	osgVolume	,
		VolumeSettings
	)

void osgVolume::VolumeSettings::setCutoff ( float co )

void osgVolume::VolumeSettings::setFilename ( const std::string & str )

inline

Definition at line 36 of file VolumeSettings.h.

void osgVolume::VolumeSettings::setSampleRatio ( float sr )

inline

Definition at line 60 of file VolumeSettings.h.

void osgVolume::VolumeSettings::setSampleRatioWhenMoving ( float sr )

inline

Definition at line 63 of file VolumeSettings.h.

void osgVolume::VolumeSettings::setShadingModel ( ShadingModel sm )

inline

Definition at line 57 of file VolumeSettings.h.

void osgVolume::VolumeSettings::setTechnique ( Technique technique )

inline

Definition at line 46 of file VolumeSettings.h.

void osgVolume::VolumeSettings::setTransparency ( float t )

inline

Definition at line 69 of file VolumeSettings.h.

virtual void osgVolume::VolumeSettings::traverse ( PropertyVisitor & pv )

virtual

Reimplemented from osgVolume::Property.

Member Data Documentation

osg::ref_ptr<AlphaFuncProperty> osgVolume::VolumeSettings::_cutoffProperty

protected

Definition at line 99 of file VolumeSettings.h.

std::string osgVolume::VolumeSettings::_filename

protected

Definition at line 92 of file VolumeSettings.h.

osg::ref_ptr<IsoSurfaceProperty> osgVolume::VolumeSettings::_isoSurfaceProperty

protected

Definition at line 101 of file VolumeSettings.h.

osg::ref_ptr<SampleRatioProperty> osgVolume::VolumeSettings::_sampleRatioProperty

protected

Definition at line 97 of file VolumeSettings.h.

osg::ref_ptr<SampleRatioWhenMovingProperty> osgVolume::VolumeSettings::_sampleRatioWhenMovingProperty

protected

Definition at line 98 of file VolumeSettings.h.

ShadingModel osgVolume::VolumeSettings::_shadingModel

protected

Definition at line 95 of file VolumeSettings.h.

Technique osgVolume::VolumeSettings::_technique

protected

Definition at line 94 of file VolumeSettings.h.

osg::ref_ptr<TransparencyProperty> osgVolume::VolumeSettings::_transparencyProperty

protected

Definition at line 100 of file VolumeSettings.h.

The documentation for this class was generated from the following file:

osg_head/include/osgVolume/VolumeSettings.h
