#include <Optimizer.h>

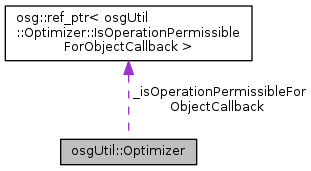

Collaboration diagram for osgUtil::Optimizer:

Classes
class	CheckGeometryVisitor

class	CombineLODsVisitor

class	CombineStaticTransformsVisitor

class	CopySharedSubgraphsVisitor

class	FlattenBillboardVisitor

class	FlattenStaticTransformsDuplicatingSharedSubgraphsVisitor

class	FlattenStaticTransformsVisitor

struct	IsOperationPermissibleForObjectCallback

class	MakeFastGeometryVisitor

class	MergeGeodesVisitor

class	MergeGeometryVisitor

class	RemoveEmptyNodesVisitor

class	RemoveLoadedProxyNodesVisitor

class	RemoveRedundantNodesVisitor

class	SpatializeGroupsVisitor

class	StateVisitor

class	StaticObjectDetectionVisitor

class	TessellateVisitor

class	TextureAtlasBuilder

class	TextureAtlasVisitor

class	TextureVisitor

Public Types
enum	OptimizationOptions { FLATTEN_STATIC_TRANSFORMS = (1 << 0), REMOVE_REDUNDANT_NODES = (1 << 1), REMOVE_LOADED_PROXY_NODES = (1 << 2), COMBINE_ADJACENT_LODS = (1 << 3), SHARE_DUPLICATE_STATE = (1 << 4), MERGE_GEOMETRY = (1 << 5), CHECK_GEOMETRY = (1 << 6), MAKE_FAST_GEOMETRY = (1 << 7), SPATIALIZE_GROUPS = (1 << 8), COPY_SHARED_NODES = (1 << 9), TRISTRIP_GEOMETRY = (1 << 10), TESSELLATE_GEOMETRY = (1 << 11), OPTIMIZE_TEXTURE_SETTINGS = (1 << 12), MERGE_GEODES = (1 << 13), FLATTEN_BILLBOARDS = (1 << 14), TEXTURE_ATLAS_BUILDER = (1 << 15), STATIC_OBJECT_DETECTION = (1 << 16), FLATTEN_STATIC_TRANSFORMS_DUPLICATING_SHARED_SUBGRAPHS = (1 << 17), INDEX_MESH = (1 << 18), VERTEX_POSTTRANSFORM = (1 << 19), VERTEX_PRETRANSFORM = (1 << 20), DEFAULT_OPTIMIZATIONS, ALL_OPTIMIZATIONS }

Public Member Functions
	Optimizer ()

virtual	~Optimizer ()

void	reset ()

void	optimize (osg::Node *node)

virtual void	optimize (osg::Node *node, unsigned int options)

void	setIsOperationPermissibleForObjectCallback (IsOperationPermissibleForObjectCallback *callback)

IsOperationPermissibleForObjectCallback *	getIsOperationPermissibleForObjectCallback ()

const IsOperationPermissibleForObjectCallback *	getIsOperationPermissibleForObjectCallback () const

void	setPermissibleOptimizationsForObject (const osg::Object *object, unsigned int options)

unsigned int	getPermissibleOptimizationsForObject (const osg::Object *object) const

bool	isOperationPermissibleForObject (const osg::StateSet *object, unsigned int option) const

bool	isOperationPermissibleForObject (const osg::StateAttribute *object, unsigned int option) const

bool	isOperationPermissibleForObject (const osg::Drawable *object, unsigned int option) const

bool	isOperationPermissibleForObject (const osg::Node *object, unsigned int option) const

bool	isOperationPermissibleForObjectImplementation (const osg::StateSet *stateset, unsigned int option) const

bool	isOperationPermissibleForObjectImplementation (const osg::StateAttribute *attribute, unsigned int option) const

bool	isOperationPermissibleForObjectImplementation (const osg::Drawable *drawable, unsigned int option) const

bool	isOperationPermissibleForObjectImplementation (const osg::Node *node, unsigned int option) const

Protected Types
typedef std::map< const osg::Object *, unsigned int >	PermissibleOptimizationsMap

Protected Attributes
osg::ref_ptr < IsOperationPermissibleForObjectCallback >	_isOperationPermissibleForObjectCallback

PermissibleOptimizationsMap	_permissibleOptimizationsMap

Detailed Description

Traverses scene graph to improve efficiency. See OptimizationOptions. For example of usage see examples/osgimpostor or osgviewer.

Definition at line 60 of file Optimizer.h.

Member Typedef Documentation

typedef std::map<const osg::Object*,unsigned int> osgUtil::Optimizer::PermissibleOptimizationsMap

protected

Definition at line 253 of file Optimizer.h.

Member Enumeration Documentation

enum osgUtil::Optimizer::OptimizationOptions

Enumerator
FLATTEN_STATIC_TRANSFORMS
REMOVE_REDUNDANT_NODES
REMOVE_LOADED_PROXY_NODES
COMBINE_ADJACENT_LODS
SHARE_DUPLICATE_STATE
MERGE_GEOMETRY
CHECK_GEOMETRY
MAKE_FAST_GEOMETRY
SPATIALIZE_GROUPS
COPY_SHARED_NODES
TRISTRIP_GEOMETRY
TESSELLATE_GEOMETRY
OPTIMIZE_TEXTURE_SETTINGS
MERGE_GEODES
FLATTEN_BILLBOARDS
TEXTURE_ATLAS_BUILDER
STATIC_OBJECT_DETECTION
FLATTEN_STATIC_TRANSFORMS_DUPLICATING_SHARED_SUBGRAPHS
INDEX_MESH
VERTEX_POSTTRANSFORM
VERTEX_PRETRANSFORM
DEFAULT_OPTIMIZATIONS
ALL_OPTIMIZATIONS

Definition at line 68 of file Optimizer.h.

Constructor & Destructor Documentation

osgUtil::Optimizer::Optimizer ( )

inline

Definition at line 65 of file Optimizer.h.

virtual osgUtil::Optimizer::~Optimizer ( )

inlinevirtual

Definition at line 66 of file Optimizer.h.

Member Function Documentation

IsOperationPermissibleForObjectCallback* osgUtil::Optimizer::getIsOperationPermissibleForObjectCallback ( )

inline

Get the callback for customizing what operations are permitted on objects in the scene graph.

Definition at line 159 of file Optimizer.h.

const IsOperationPermissibleForObjectCallback* osgUtil::Optimizer::getIsOperationPermissibleForObjectCallback ( ) const

inline

Get the callback for customizing what operations are permitted on objects in the scene graph.

Definition at line 162 of file Optimizer.h.

unsigned int osgUtil::Optimizer::getPermissibleOptimizationsForObject ( const osg::Object * object ) const

inline

Definition at line 170 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObject	(	const osg::StateSet *	object,
		unsigned int	option
	)		const

inline

Definition at line 178 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObject	(	const osg::StateAttribute *	object,
		unsigned int	option
	)		const

inline

Definition at line 186 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObject	(	const osg::Drawable *	object,
		unsigned int	option
	)		const

inline

Definition at line 194 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObject	(	const osg::Node *	object,
		unsigned int	option
	)		const

inline

Definition at line 202 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObjectImplementation	(	const osg::StateSet *	stateset,
		unsigned int	option
	)		const

inline

Definition at line 210 of file Optimizer.h.

Here is the caller graph for this function:

bool osgUtil::Optimizer::isOperationPermissibleForObjectImplementation	(	const osg::StateAttribute *	attribute,
		unsigned int	option
	)		const

inline

Definition at line 215 of file Optimizer.h.

bool osgUtil::Optimizer::isOperationPermissibleForObjectImplementation	(	const osg::Drawable *	drawable,
		unsigned int	option
	)		const

inline

Definition at line 220 of file Optimizer.h.

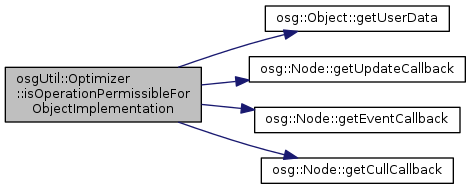

Here is the call graph for this function:

bool osgUtil::Optimizer::isOperationPermissibleForObjectImplementation	(	const osg::Node *	node,
		unsigned int	option
	)		const

inline

Definition at line 232 of file Optimizer.h.

Here is the call graph for this function:

void osgUtil::Optimizer::optimize ( osg::Node * node )

Traverse the node and its subgraph with a series of optimization visitors, specified by the OptimizationOptions.

virtual void osgUtil::Optimizer::optimize	(	osg::Node *	node,
		unsigned int	options
	)

virtual

Traverse the node and its subgraph with a series of optimization visitors, specified by the OptimizationOptions.

void osgUtil::Optimizer::reset ( )

Reset internal data to initial state - the getPermissibleOptionsMap is cleared.

void osgUtil::Optimizer::setIsOperationPermissibleForObjectCallback ( IsOperationPermissibleForObjectCallback * callback )

inline

Set the callback for customizing what operations are permitted on objects in the scene graph.

Definition at line 156 of file Optimizer.h.

void osgUtil::Optimizer::setPermissibleOptimizationsForObject	(	const osg::Object *	object,
		unsigned int	options
	)

inline

Definition at line 165 of file Optimizer.h.

Member Data Documentation

osg::ref_ptr<IsOperationPermissibleForObjectCallback> osgUtil::Optimizer::_isOperationPermissibleForObjectCallback

protected

Definition at line 251 of file Optimizer.h.

PermissibleOptimizationsMap osgUtil::Optimizer::_permissibleOptimizationsMap

protected

Definition at line 254 of file Optimizer.h.

The documentation for this class was generated from the following file:

osg_head/include/osgUtil/Optimizer.h
