osgUtil::HalfWayMapGenerator Class Reference

#include <HalfWayMapGenerator.h>

Inheritance diagram for osgUtil::HalfWayMapGenerator:

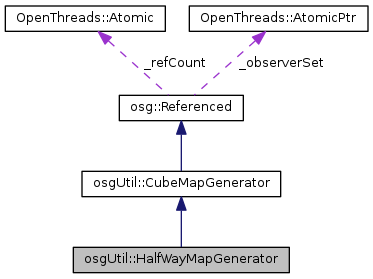

Collaboration diagram for osgUtil::HalfWayMapGenerator:

Public Member Functions
	HalfWayMapGenerator (const osg::Vec3 &light_direction, int texture_size=64)
	HalfWayMapGenerator (const HalfWayMapGenerator &copy, const osg::CopyOp &copyop)
Public Member Functions inherited from osgUtil::CubeMapGenerator
	CubeMapGenerator (int texture_size=64)
	CubeMapGenerator (const CubeMapGenerator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
osg::Image *	getImage (osg::TextureCubeMap::Face face)
const osg::Image *	getImage (osg::TextureCubeMap::Face face) const
void	generateMap (bool use_osg_system=true)
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~HalfWayMapGenerator ()
HalfWayMapGenerator &	operator= (const HalfWayMapGenerator &)
virtual osg::Vec4	compute_color (const osg::Vec3 &R) const
Protected Member Functions inherited from osgUtil::CubeMapGenerator
virtual	~CubeMapGenerator ()
CubeMapGenerator &	operator= (const CubeMapGenerator &)
void	set_pixel (int index, int c, int r, const osg::Vec4 &color)
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()
Static Protected Member Functions inherited from osgUtil::CubeMapGenerator
static osg::Vec4	vector_to_color (const osg::Vec3 &vec)
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Detailed Description

This cube map generator produces an Half-way vector map, useful for hardware-based specular lighting effects. It computes: C = normalize(R - L), where C is the resulting color, R is the reflection vector and L is the light direction.

Definition at line 28 of file HalfWayMapGenerator.h.

Constructor & Destructor Documentation

osgUtil::HalfWayMapGenerator::HalfWayMapGenerator	(	const osg::Vec3 &	light_direction,
		int	texture_size = 64
	)

osgUtil::HalfWayMapGenerator::HalfWayMapGenerator	(	const HalfWayMapGenerator &	copy,
		const osg::CopyOp &	copyop
	)

virtual osgUtil::HalfWayMapGenerator::~HalfWayMapGenerator ( )

inlineprotectedvirtual

Definition at line 34 of file HalfWayMapGenerator.h.

Member Function Documentation

osg::Vec4 osgUtil::HalfWayMapGenerator::compute_color ( const osg::Vec3 &  R ) const

inlineprotectedvirtual

Override this method to define how colors are computed. The parameter R is the reflection vector, pointing from the center of the cube. The return value should be the RGBA color associated with that reflection ray.

Implements osgUtil::CubeMapGenerator.

Definition at line 45 of file HalfWayMapGenerator.h.

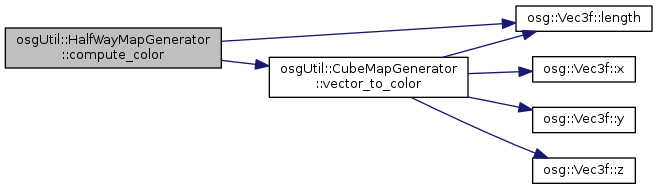

Here is the call graph for this function:

HalfWayMapGenerator& osgUtil::HalfWayMapGenerator::operator= ( const HalfWayMapGenerator &  )

inlineprotected

Definition at line 35 of file HalfWayMapGenerator.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgUtil/HalfWayMapGenerator.h
