osg::TransferFunction1D Class Reference

#include <TransferFunction.h>

Inheritance diagram for osg::TransferFunction1D:

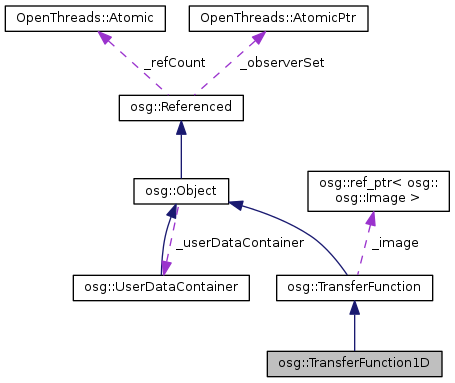

Collaboration diagram for osg::TransferFunction1D:

Public Types
typedef std::map< float, osg::Vec4 >	ColorMap
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	TransferFunction1D ()
	TransferFunction1D (const TransferFunction1D &tf, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Object (osg, TransferFunction1D) float getMinimum() const
float	getMaximum () const
void	allocate (unsigned int numImageCells)
void	clear (const osg::Vec4 &color=osg::Vec4(1.0f, 1.0f, 1.0f, 1.0f))
osg::Vec4	getPixelValue (unsigned int i) const
unsigned int	getNumberImageCells () const
void	setColor (float v, const osg::Vec4 &color, bool updateImage=true)
osg::Vec4	getColor (float v) const
void	setColorMap (const ColorMap &vcm)
ColorMap &	getColorMap ()
const ColorMap &	getColorMap () const
void	assign (const ColorMap &vcm)
void	updateImage ()
Public Member Functions inherited from osg::TransferFunction
	TransferFunction ()
	TransferFunction (const TransferFunction &tf, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Object (osg, TransferFunction) osg
const osg::Image *	getImage () const
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const =0
virtual Object *	clone (const CopyOp &) const =0
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
virtual const char *	className () const =0
std::string	getCompoundClassName () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
virtual void	resizeGLObjectBuffers (unsigned int)
virtual void	releaseGLObjects (osg::State *=0) const
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
void	assignToImage (float lower_v, const osg::Vec4 &lower_c, float upper_v, const osg::Vec4 &upper_c)
Protected Member Functions inherited from osg::TransferFunction
virtual	~TransferFunction ()
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
ColorMap	_colorMap
Protected Attributes inherited from osg::TransferFunction
osg::ref_ptr< osg::Image >	_image
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

1D variant of TransferFunction.

Definition at line 55 of file TransferFunction.h.

Member Typedef Documentation

typedef std::map<float, osg::Vec4> osg::TransferFunction1D::ColorMap

Definition at line 105 of file TransferFunction.h.

Constructor & Destructor Documentation

osg::TransferFunction1D::TransferFunction1D

(

)

osg::TransferFunction1D::TransferFunction1D	(	const TransferFunction1D &	tf,
		const CopyOp &	copyop = CopyOp::SHALLOW_COPY
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

Member Function Documentation

void osg::TransferFunction1D::allocate

(

unsigned int

numImageCells

)

allocate the osg::Image with specified dimension. The Image tracks the color map, and is used to represent the transfer function when download to GPU.

void osg::TransferFunction1D::assign

(

const ColorMap &

vcm

)

Assign a color map and automatically update the image to make sure they are in sync.

void osg::TransferFunction1D::assignToImage ( float  lower_v, const osg::Vec4 &  lower_c, float  upper_v, const osg::Vec4 &  upper_c  )

protected

void osg::TransferFunction1D::clear

(

const osg::Vec4 &

color = osg::Vec4(1.0f, 1.0f, 1.0f, 1.0f)

)

Clear the whole range to just represent a single color.

osg::Vec4 osg::TransferFunction1D::getColor

(

float

v

)

const

Get the color for a specified transfer function value, interpolating the value if no exact match is found.

ColorMap& osg::TransferFunction1D::getColorMap ( )

inline

Get the color map that stores the mapping between the transfer function value and the colour it maps to.

Definition at line 111 of file TransferFunction.h.

const ColorMap& osg::TransferFunction1D::getColorMap ( ) const

inline

Get the const color map that stores the mapping between the transfer function value and the colour it maps to.

Definition at line 114 of file TransferFunction.h.

float osg::TransferFunction1D::getMaximum ( ) const

inline

Get the maximum transfer function value.

Definition at line 70 of file TransferFunction.h.

unsigned int osg::TransferFunction1D::getNumberImageCells ( ) const

inline

Get the number of image cells that are assigned to the represent the transfer function when download to the GPU.

Definition at line 93 of file TransferFunction.h.

osg::Vec4 osg::TransferFunction1D::getPixelValue ( unsigned int  i ) const

inline

Get pixel value from the image.

Definition at line 80 of file TransferFunction.h.

osg::TransferFunction1D::META_Object ( osg  , TransferFunction1D    ) const

inline

Get the minimum transfer function value.

Definition at line 64 of file TransferFunction.h.

void osg::TransferFunction1D::setColor	(	float	v,
		const osg::Vec4 &	color,
		bool	updateImage = true
	)

Set the color for a specified transfer function value. updateImage defaults to true, and tells the setColor function to update the associate osg::Image that tracks the color map. Pass in false as the updateImage parameter if you are setting up many values at once to avoid recomputation of the image data, then once all setColor calls are made explicitly call updateImage() to bring the osg::Image back into sync with the color map.

void osg::TransferFunction1D::setColorMap ( const ColorMap &  vcm )

inline

set the color map and automatically update the image to make sure they are in sync.

Definition at line 108 of file TransferFunction.h.

void osg::TransferFunction1D::updateImage

(

)

Manually update the associate osg::Image to represent the colors assigned in the color map.

Member Data Documentation

ColorMap osg::TransferFunction1D::_colorMap

protected

Definition at line 124 of file TransferFunction.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/TransferFunction.h
