#include <ShapeDrawable.h>

Inheritance diagram for osg::TessellationHints:

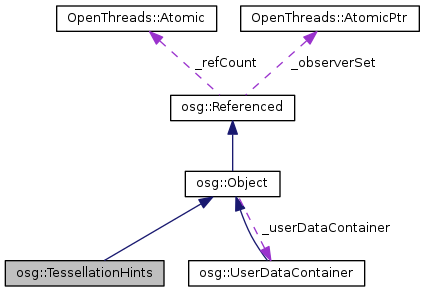

Collaboration diagram for osg::TessellationHints:

Public Types
enum	TessellationMode { USE_SHAPE_DEFAULTS, USE_TARGET_NUM_FACES }

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	TessellationHints ()

	TessellationHints (const TessellationHints &tess, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Object (osg, TessellationHints)

void	setTessellationMode (TessellationMode mode)

TessellationMode	getTessellationMode () const

void	setDetailRatio (float ratio)

float	getDetailRatio () const

void	setTargetNumFaces (unsigned int target)

unsigned int	getTargetNumFaces () const

void	setCreateFrontFace (bool on)

bool	getCreateFrontFace () const

void	setCreateBackFace (bool on)

bool	getCreateBackFace () const

void	setCreateNormals (bool on)

bool	getCreateNormals () const

void	setCreateTextureCoords (bool on)

bool	getCreateTextureCoords () const

void	setCreateTop (bool on)

bool	getCreateTop () const

void	setCreateBody (bool on)

bool	getCreateBody () const

void	setCreateBottom (bool on)

bool	getCreateBottom () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
	~TessellationHints ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
TessellationMode	_TessellationMode

float	_detailRatio

unsigned int	_targetNumFaces

bool	_createFrontFace

bool	_createBackFace

bool	_createNormals

bool	_createTextureCoords

bool	_createTop

bool	_createBody

bool	_createBottom

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Describe several hints that can be passed to a Tessellator (like the one used by ShapeDrawable) as a mean to try to influence the way it works.

Definition at line 29 of file ShapeDrawable.h.

Member Enumeration Documentation

enum osg::TessellationHints::TessellationMode

Enumerator
USE_SHAPE_DEFAULTS
USE_TARGET_NUM_FACES

Definition at line 62 of file ShapeDrawable.h.

Constructor & Destructor Documentation

osg::TessellationHints::TessellationHints ( )

inline

Definition at line 33 of file ShapeDrawable.h.

osg::TessellationHints::TessellationHints	(	const TessellationHints &	tess,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 46 of file ShapeDrawable.h.

osg::TessellationHints::~TessellationHints ( )

inlineprotected

Definition at line 100 of file ShapeDrawable.h.

Member Function Documentation

bool osg::TessellationHints::getCreateBackFace ( ) const

inline

Definition at line 81 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateBody ( ) const

inline

Definition at line 93 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateBottom ( ) const

inline

Definition at line 96 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateFrontFace ( ) const

inline

Definition at line 78 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateNormals ( ) const

inline

Definition at line 84 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateTextureCoords ( ) const

inline

Definition at line 87 of file ShapeDrawable.h.

bool osg::TessellationHints::getCreateTop ( ) const

inline

Definition at line 90 of file ShapeDrawable.h.

float osg::TessellationHints::getDetailRatio ( ) const

inline

Definition at line 72 of file ShapeDrawable.h.

unsigned int osg::TessellationHints::getTargetNumFaces ( ) const

inline

Definition at line 75 of file ShapeDrawable.h.

TessellationMode osg::TessellationHints::getTessellationMode ( ) const

inline

Definition at line 69 of file ShapeDrawable.h.

osg::TessellationHints::META_Object	(	osg	,
		TessellationHints
	)

void osg::TessellationHints::setCreateBackFace ( bool on )

inline

Definition at line 80 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateBody ( bool on )

inline

Definition at line 92 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateBottom ( bool on )

inline

Definition at line 95 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateFrontFace ( bool on )

inline

Definition at line 77 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateNormals ( bool on )

inline

Definition at line 83 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateTextureCoords ( bool on )

inline

Definition at line 86 of file ShapeDrawable.h.

void osg::TessellationHints::setCreateTop ( bool on )

inline

Definition at line 89 of file ShapeDrawable.h.

void osg::TessellationHints::setDetailRatio ( float ratio )

inline

Definition at line 71 of file ShapeDrawable.h.

void osg::TessellationHints::setTargetNumFaces ( unsigned int target )

inline

Definition at line 74 of file ShapeDrawable.h.

void osg::TessellationHints::setTessellationMode ( TessellationMode mode )

inline

Definition at line 68 of file ShapeDrawable.h.

Member Data Documentation

bool osg::TessellationHints::_createBackFace

protected

Definition at line 109 of file ShapeDrawable.h.

bool osg::TessellationHints::_createBody

protected

Definition at line 114 of file ShapeDrawable.h.

bool osg::TessellationHints::_createBottom

protected

Definition at line 115 of file ShapeDrawable.h.

bool osg::TessellationHints::_createFrontFace

protected

Definition at line 108 of file ShapeDrawable.h.

bool osg::TessellationHints::_createNormals

protected

Definition at line 110 of file ShapeDrawable.h.

bool osg::TessellationHints::_createTextureCoords

protected

Definition at line 111 of file ShapeDrawable.h.

bool osg::TessellationHints::_createTop

protected

Definition at line 113 of file ShapeDrawable.h.

float osg::TessellationHints::_detailRatio

protected

Definition at line 105 of file ShapeDrawable.h.

unsigned int osg::TessellationHints::_targetNumFaces

protected

Definition at line 106 of file ShapeDrawable.h.

TessellationMode osg::TessellationHints::_TessellationMode

protected

Definition at line 103 of file ShapeDrawable.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/ShapeDrawable.h
