Represents XML Nodes. More...

#include <libxml++/nodes/node.h>

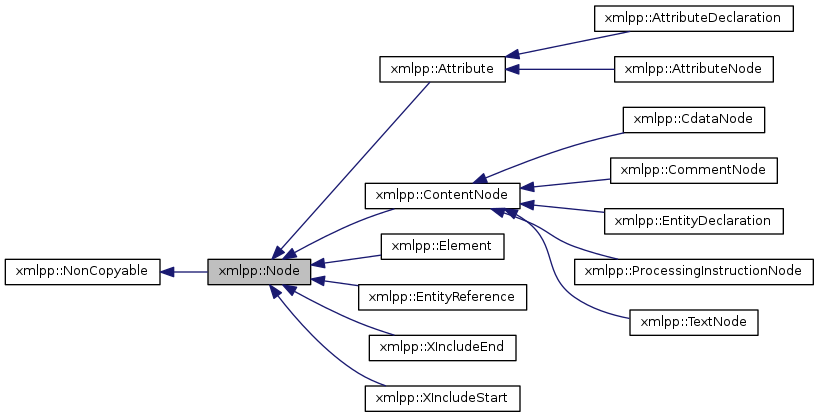

Inheritance diagram for xmlpp::Node:

Public Types
typedef std::list< Node* >	NodeList

typedef std::map< Glib::ustring, Glib::ustring >	PrefixNsMap
	A map of namespace prefixes to namespace URIs. More...

Public Member Functions
	Node (_xmlNode* node)

	~Node () override

Element*	add_child (const Glib::ustring& name, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node. More...

Element*	add_child (xmlpp::Node* previous_sibling, const Glib::ustring& name, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node after the specified existing child node. More...

Element*	add_child_before (xmlpp::Node* next_sibling, const Glib::ustring& name, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node before the specified existing child node. More...

Element*	add_child_before_with_new_ns (xmlpp::Node* next_sibling, const Glib::ustring& name, const Glib::ustring& ns_uri, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node before the specified existing child node. More...

Element*	add_child_with_new_ns (const Glib::ustring& name, const Glib::ustring& ns_uri, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node. More...

Element*	add_child_with_new_ns (xmlpp::Node* previous_sibling, const Glib::ustring& name, const Glib::ustring& ns_uri, const Glib::ustring& ns_prefix=Glib::ustring())
	Add a child element to this node after the specified existing child node. More...

_xmlNode*	cobj ()
	Access the underlying libxml implementation. More...

const _xmlNode*	cobj () const
	Access the underlying libxml implementation. More...

bool	eval_to_boolean (const Glib::ustring& xpath, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

bool	eval_to_boolean (const Glib::ustring& xpath, const PrefixNsMap& namespaces, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

double	eval_to_number (const Glib::ustring& xpath, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

double	eval_to_number (const Glib::ustring& xpath, const PrefixNsMap& namespaces, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

Glib::ustring	eval_to_string (const Glib::ustring& xpath, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

Glib::ustring	eval_to_string (const Glib::ustring& xpath, const PrefixNsMap& namespaces, XPathResultType* result_type=nullptr) const
	Evaluate an XPath expression. More...

NodeSet	find (const Glib::ustring& xpath) const
	Find nodes from an XPath expression. More...

NodeSet	find (const Glib::ustring& xpath, const PrefixNsMap& namespaces) const
	Find nodes from an XPath expression. More...

NodeList	get_children (const Glib::ustring& name=Glib::ustring())
	Obtain the list of child nodes. More...

const NodeList	get_children (const Glib::ustring& name=Glib::ustring()) const
	Obtain the list of child nodes. More...

const Node*	get_first_child (const Glib::ustring& name=Glib::ustring()) const
	Get the first child of this node. More...

Node*	get_first_child (const Glib::ustring& name=Glib::ustring())
	Get the first child of this node. More...

int	get_line () const
	Discover at what line number this node occurs in the XML file. More...

Glib::ustring	get_name () const
	Get the name of this node. More...

Glib::ustring	get_namespace_prefix () const
	Get the namespace prefix of this node. More...

Glib::ustring	get_namespace_uri () const
	Get the namespace URI of this node. More...

const Node*	get_next_sibling () const
	Get the next sibling for this node. More...

Node*	get_next_sibling ()
	Get the next sibling for this node. More...

const Element*	get_parent () const
	Get the parent element for this node. More...

Element*	get_parent ()
	Get the parent element for this node. More...

Glib::ustring	get_path () const
	Get the XPath of this node. More...

const Node*	get_previous_sibling () const
	Get the previous sibling for this node . More...

Node*	get_previous_sibling ()
	Get the previous sibling for this node. More...

Node*	import_node (const Node* node, bool recursive=true)
	Import node(s) from another document under this node, without affecting the source node. More...

void	remove_child (Node* node)
	Remove the child node. More...

void	set_name (const Glib::ustring& name)
	Set the name of this node. More...

void	set_namespace (const Glib::ustring& ns_prefix)
	Set the namespace prefix used by the node. More...

Static Public Member Functions
static void	create_wrapper (_xmlNode* node)
	Construct the correct C++ instance for a given libxml C struct instance. More...

static void	free_wrappers (_xmlNode* node)
	Delete the C++ instance for a given libxml C struct instance, and also recursively destroy the C++ instances for any children. More...

Protected Member Functions
_xmlNode*	create_new_child_node (const Glib::ustring& name, const Glib::ustring& ns_prefix)
	Create the C instance ready to be added to the parent node. More...

_xmlNode*	create_new_child_node_with_new_ns (const Glib::ustring& name, const Glib::ustring& ns_uri, const Glib::ustring& ns_prefix)
	Create the C instance ready to be added to the parent node. More...

Protected Member Functions inherited from xmlpp::NonCopyable
	NonCopyable ()

	NonCopyable (const NonCopyable&)=delete

virtual	~NonCopyable ()

NonCopyable&	operator= (const NonCopyable&)=delete

Detailed Description

Represents XML Nodes.

You should never new or delete Nodes. The Parser will create and manage them for you.

Member Typedef Documentation

typedef std::list<Node*> xmlpp::Node::NodeList

typedef std::map<Glib::ustring, Glib::ustring> xmlpp::Node::PrefixNsMap

A map of namespace prefixes to namespace URIs.

Constructor & Destructor Documentation

xmlpp::Node::Node ( _xmlNode * node )

explicit

Exceptions

xmlpp::internal_error If node is nullptr.

xmlpp::Node::~Node ( )

override

Member Function Documentation

Element* xmlpp::Node::add_child	(	const Glib::ustring &	name,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node.

This node must be an element node.

Parameters

name	The new node name
ns_prefix	The namespace prefix. If the prefix has not been declared then this method will throw an exception.

Returns: The newly-created element

Exceptions

xmlpp::exception	If a namespace prefix is specified, but has not been declared.
xmlpp::internal_error	If this node is not an element node, or the child node cannot be created.

Element* xmlpp::Node::add_child	(	xmlpp::Node*	previous_sibling,
		const Glib::ustring &	name,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node after the specified existing child node.

This node must be an element node.

Since libxml++ 2.24:

Parameters

previous_sibling	An existing child node.
name	The new node name
ns_prefix	The namespace prefix. If the prefix has not been declared then this method will throw an exception.

Returns: The newly-created element

Exceptions

xmlpp::exception	If a namespace prefix is specified, but has not been declared.
xmlpp::internal_error	If this node is not an element node, or the child node cannot be created.

Element* xmlpp::Node::add_child_before	(	xmlpp::Node*	next_sibling,
		const Glib::ustring &	name,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node before the specified existing child node.

This node must be an element node.

Since libxml++ 2.24:

Parameters

next_sibling	An existing child node.
name	The new node name
ns_prefix	The namespace prefix. If the prefix has not been declared then this method will throw an exception.

Returns: The newly-created element

Exceptions

xmlpp::exception	If a namespace prefix is specified, but has not been declared.
xmlpp::internal_error	If this node is not an element node, or the child node cannot be created.

Element* xmlpp::Node::add_child_before_with_new_ns	(	xmlpp::Node*	next_sibling,
		const Glib::ustring &	name,
		const Glib::ustring &	ns_uri,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node before the specified existing child node.

This node must be an element node.

Since libxml++ 2.38:

Parameters

next_sibling	An existing child node.
name	The new node name.
ns_uri	The namespace to associate with the prefix, or to use as the default namespace if no prefix is specified.
ns_prefix	The prefix of the node's namespace. If no prefix is specified then the namespace URI will be the default namespace.

Returns: The newly-created element.

Exceptions

xmlpp::internal_error If this node is not an element node, or the child node or the namespace node cannot be created.

Element* xmlpp::Node::add_child_with_new_ns	(	const Glib::ustring &	name,
		const Glib::ustring &	ns_uri,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node.

This node must be an element node.

Since libxml++ 2.38:

Parameters

name	The new node name.
ns_uri	The namespace to associate with the prefix, or to use as the default namespace if no prefix is specified.
ns_prefix	The prefix of the node's namespace. If no prefix is specified then the namespace URI will be the default namespace.

Returns: The newly-created element.

Exceptions

xmlpp::internal_error If this node is not an element node, or the child node or the namespace node cannot be created.

Element* xmlpp::Node::add_child_with_new_ns	(	xmlpp::Node*	previous_sibling,
		const Glib::ustring &	name,
		const Glib::ustring &	ns_uri,
		const Glib::ustring &	ns_prefix = `Glib::ustring()`
	)

Add a child element to this node after the specified existing child node.

This node must be an element node.

Since libxml++ 2.38:

Parameters

previous_sibling	An existing child node.
name	The new node name.
ns_uri	The namespace to associate with the prefix, or to use as the default namespace if no prefix is specified.
ns_prefix	The prefix of the node's namespace. If no prefix is specified then the namespace URI will be the default namespace.

Returns: The newly-created element.

Exceptions

xmlpp::internal_error If this node is not an element node, or the child node or the namespace node cannot be created.

_xmlNode* xmlpp::Node::cobj ( )

Access the underlying libxml implementation.

const _xmlNode* xmlpp::Node::cobj ( ) const

Access the underlying libxml implementation.

_xmlNode* xmlpp::Node::create_new_child_node	(	const Glib::ustring &	name,
		const Glib::ustring &	ns_prefix
	)

protected

Create the C instance ready to be added to the parent node.

_xmlNode* xmlpp::Node::create_new_child_node_with_new_ns	(	const Glib::ustring &	name,
		const Glib::ustring &	ns_uri,
		const Glib::ustring &	ns_prefix
	)

protected

Create the C instance ready to be added to the parent node.

static void xmlpp::Node::create_wrapper ( _xmlNode * node )

static

Construct the correct C++ instance for a given libxml C struct instance.

This is only for use by the libxml++ implementation.

Parameters

node	A pointer to an xmlNode or a "derived" struct, such as xmlDoc, xmlAttr, etc.

bool xmlpp::Node::eval_to_boolean	(	const Glib::ustring &	xpath,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
[out]	result_type	Result type of the XPath expression before conversion to boolean. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type boolean, it is converted to boolean.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

bool xmlpp::Node::eval_to_boolean	(	const Glib::ustring &	xpath,
		const PrefixNsMap&	namespaces,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
	namespaces	A map of namespace prefixes to namespace URIs to be used while evaluating.
[out]	result_type	Result type of the XPath expression before conversion to boolean. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type boolean, it is converted to boolean.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

double xmlpp::Node::eval_to_number	(	const Glib::ustring &	xpath,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
[out]	result_type	Result type of the XPath expression before conversion to number. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type number, it is converted to number.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

double xmlpp::Node::eval_to_number	(	const Glib::ustring &	xpath,
		const PrefixNsMap&	namespaces,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
	namespaces	A map of namespace prefixes to namespace URIs to be used while evaluating.
[out]	result_type	Result type of the XPath expression before conversion to number. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type number, it is converted to number.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

Glib::ustring xmlpp::Node::eval_to_string	(	const Glib::ustring &	xpath,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
[out]	result_type	Result type of the XPath expression before conversion to string. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type string, it is converted to string.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

Glib::ustring xmlpp::Node::eval_to_string	(	const Glib::ustring &	xpath,
		const PrefixNsMap&	namespaces,
		XPathResultType*	result_type = `nullptr`
	)		const

Evaluate an XPath expression.

Parameters

	xpath	The XPath expression.
	namespaces	A map of namespace prefixes to namespace URIs to be used while evaluating.
[out]	result_type	Result type of the XPath expression before conversion to string. If `nullptr`, the result type is not returned.

Returns: The value of the XPath expression. If the value is not of type string, it is converted to string.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error

Since libxml++ 2.36:

NodeSet xmlpp::Node::find ( const Glib::ustring & xpath ) const

Find nodes from an XPath expression.

Parameters

xpath The XPath of the nodes.

Returns: The resulting NodeSet.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error	If the result type is not nodeset.

NodeSet xmlpp::Node::find	(	const Glib::ustring &	xpath,
		const PrefixNsMap&	namespaces
	)		const

Find nodes from an XPath expression.

Parameters

xpath	The XPath of the nodes.
namespaces	A map of namespace prefixes to namespace URIs to be used while finding.

Returns: The resulting NodeSet.

Exceptions

xmlpp::exception	If the XPath expression cannot be evaluated.
xmlpp::internal_error	If the result type is not nodeset.

static void xmlpp::Node::free_wrappers ( _xmlNode * node )

static

Delete the C++ instance for a given libxml C struct instance, and also recursively destroy the C++ instances for any children.

This is only for use by the libxml++ implementation.

Parameters

node	A pointer to an xmlNode or a "derived" struct, such as xmlDoc, xmlAttr, etc.

NodeList xmlpp::Node::get_children ( const Glib::ustring & name = Glib::ustring() )

Obtain the list of child nodes.

You may optionally obtain a list of only the child nodes which have a certain name.

Parameters

name	The names of the child nodes to get. If you do not specify a name, then the list will contain all nodes, regardless of their names.

Returns: The list of child nodes.

const NodeList xmlpp::Node::get_children ( const Glib::ustring & name = Glib::ustring() ) const

Obtain the list of child nodes.

You may optionally obtain a list of only the child nodes which have a certain name.

Parameters

name	The names of the child nodes to get. If you do not specify a name, then the list will contain all nodes, regardless of their names.

Returns: The list of child nodes.

const Node* xmlpp::Node::get_first_child ( const Glib::ustring & name = Glib::ustring() ) const

Get the first child of this node.

You may optionally get the first child node which has a certain name.

Parameters

name	The name of the requested child node, or an empty string.

Returns: The first child, or nullptr if no child node (with the specified name) exists.

Since libxml++ 2.36:

Node* xmlpp::Node::get_first_child ( const Glib::ustring & name = Glib::ustring() )

Get the first child of this node.

You may optionally get the first child node which has a certain name.

Parameters

name	The name of the requested child node, or an empty string.

Returns: The first child, or nullptr if no child node (with the specified name) exists.

Since libxml++ 2.36:

int xmlpp::Node::get_line ( ) const

Discover at what line number this node occurs in the XML file.

Returns: The line number.

Glib::ustring xmlpp::Node::get_name ( ) const

Get the name of this node.

Returns: The node's name.

Glib::ustring xmlpp::Node::get_namespace_prefix ( ) const

Get the namespace prefix of this node.

Returns: The node's namespace prefix. Can be an empty string.

Glib::ustring xmlpp::Node::get_namespace_uri ( ) const

Get the namespace URI of this node.

Returns: The node's namespace URI. Can be an empty string.

const Node* xmlpp::Node::get_next_sibling ( ) const

Get the next sibling for this node.

Returns: The next sibling, or nullptr if the node has no next sibling.

Node* xmlpp::Node::get_next_sibling ( )

Get the next sibling for this node.

Returns: The next sibling, or nullptr if the node has no next sibling.

const Element* xmlpp::Node::get_parent ( ) const

Get the parent element for this node.

Returns: The parent node, or nullptr if the node has no parent element.

Element* xmlpp::Node::get_parent ( )

Get the parent element for this node.

Returns: The parent node, or nullptr if the node has no parent element.

Glib::ustring xmlpp::Node::get_path ( ) const

Get the XPath of this node.

Returns: The XPath of the node.

const Node* xmlpp::Node::get_previous_sibling ( ) const

Get the previous sibling for this node .

Returns: The previous sibling, or nullptr if the node has no previous sibling.

Node* xmlpp::Node::get_previous_sibling ( )

Get the previous sibling for this node.

Returns: The previous sibling, or nullptr if the node has no previous sibling.

Node* xmlpp::Node::import_node	(	const Node*	node,
		bool	recursive = `true`
	)

Import node(s) from another document under this node, without affecting the source node.

If the imported node is an attribute node, and this node has an attribute with the same name as the imported attribute, the existing attribute is destroyed before the imported attribute is added. Any pointer to a destroyed attribute node becomes invalid.

Parameters

node	The node to copy and insert under the current node.
recursive	Whether to import the child nodes also. Defaults to true.

Returns: Usually the newly created node, but adjacent text nodes are merged, and the old text node with merged contents is returned.

Exceptions

xmlpp::exception

void xmlpp::Node::remove_child ( Node* node )

Remove the child node.

Parameters

node	The child node to remove. This Node will be deleted and therefore unusable after calling this method.

void xmlpp::Node::set_name ( const Glib::ustring & name )

Set the name of this node.

Parameters

name	The new name for the node.

void xmlpp::Node::set_namespace ( const Glib::ustring & ns_prefix )

Set the namespace prefix used by the node.

If no such namespace prefix has been declared then this method will throw an exception.

Parameters

ns_prefix The namespace prefix.

Exceptions

xmlpp::exception

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation
