osgUtil::PolytopeIntersector::Intersection Struct Reference

#include <PolytopeIntersector.h>

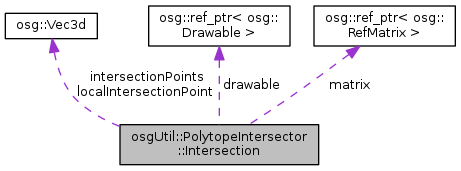

Collaboration diagram for osgUtil::PolytopeIntersector::Intersection:

Public Types
enum	{ MaxNumIntesectionPoints =6 }

Public Member Functions
	Intersection ()
bool	operator< (const Intersection &rhs) const

Public Attributes
double	distance
	distance from reference plane More...
double	maxDistance
	maximum distance of intersection points from reference plane More...
osg::NodePath	nodePath
osg::ref_ptr< osg::Drawable >	drawable
osg::ref_ptr< osg::RefMatrix >	matrix
Vec3_type	localIntersectionPoint
	center of all intersection points More...
unsigned int	numIntersectionPoints
Vec3_type	intersectionPoints [MaxNumIntesectionPoints]
unsigned int	primitiveIndex
	primitive index More...

Detailed Description

Definition at line 49 of file PolytopeIntersector.h.

Member Enumeration Documentation

anonymous enum

Enumerator
MaxNumIntesectionPoints

Definition at line 68 of file PolytopeIntersector.h.

Constructor & Destructor Documentation

osgUtil::PolytopeIntersector::Intersection::Intersection ( )

inline

Definition at line 51 of file PolytopeIntersector.h.

Member Function Documentation

bool osgUtil::PolytopeIntersector::Intersection::operator< ( const Intersection &  rhs ) const

inline

Definition at line 57 of file PolytopeIntersector.h.

Member Data Documentation

double osgUtil::PolytopeIntersector::Intersection::distance

distance from reference plane

Definition at line 70 of file PolytopeIntersector.h.

osg::ref_ptr<osg::Drawable> osgUtil::PolytopeIntersector::Intersection::drawable

Definition at line 73 of file PolytopeIntersector.h.

Vec3_type osgUtil::PolytopeIntersector::Intersection::intersectionPoints[MaxNumIntesectionPoints]

Definition at line 77 of file PolytopeIntersector.h.

Vec3_type osgUtil::PolytopeIntersector::Intersection::localIntersectionPoint

center of all intersection points

Definition at line 75 of file PolytopeIntersector.h.

osg::ref_ptr<osg::RefMatrix> osgUtil::PolytopeIntersector::Intersection::matrix

Definition at line 74 of file PolytopeIntersector.h.

double osgUtil::PolytopeIntersector::Intersection::maxDistance

maximum distance of intersection points from reference plane

Definition at line 71 of file PolytopeIntersector.h.

osg::NodePath osgUtil::PolytopeIntersector::Intersection::nodePath

Definition at line 72 of file PolytopeIntersector.h.

unsigned int osgUtil::PolytopeIntersector::Intersection::numIntersectionPoints

Definition at line 76 of file PolytopeIntersector.h.

unsigned int osgUtil::PolytopeIntersector::Intersection::primitiveIndex

primitive index

Definition at line 78 of file PolytopeIntersector.h.

---

The documentation for this struct was generated from the following file:

• osg_head/include/osgUtil/PolytopeIntersector.h
