osgText::Text::GlyphQuads Struct Reference

#include <Text.h>

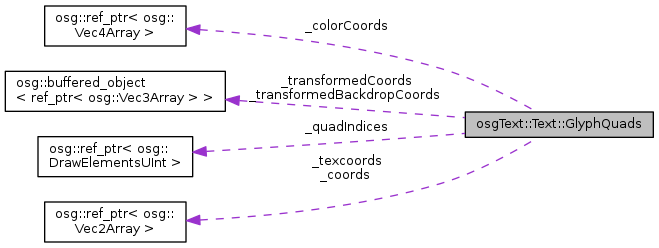

Collaboration diagram for osgText::Text::GlyphQuads:

Public Types
typedef std::vector< Glyph * >	Glyphs
typedef std::vector< unsigned int >	LineNumbers
typedef osg::ref_ptr < osg::Vec2Array >	Coords2
typedef osg::ref_ptr < osg::Vec3Array >	Coords3
typedef osg::ref_ptr < osg::Vec2Array >	TexCoords
typedef osg::ref_ptr < osg::Vec4Array >	ColorCoords

Public Member Functions
void	updateQuadIndices ()
	GlyphQuads ()
	GlyphQuads (const GlyphQuads &gq)
void	initGlyphQuads ()
void	initGPUBufferObjects ()
Glyphs &	getGlyphs ()
const Glyphs &	getGlyphs () const
Coords2 &	getCoords ()
const Coords2 &	getCoords () const
Coords3 &	getTransformedCoords (unsigned int contexID)
const Coords3 &	getTransformedCoords (unsigned int contexID) const
TexCoords &	getTexCoords ()
const TexCoords &	getTexCoords () const
LineNumbers &	getLineNumbers ()
const LineNumbers &	getLineNumbers () const
void	resizeGLObjectBuffers (unsigned int maxSize)
void	releaseGLObjects (osg::State *state=0) const

Public Attributes
Glyphs	_glyphs
Coords2	_coords
osg::buffered_object< Coords3 >	_transformedCoords
TexCoords	_texcoords
LineNumbers	_lineNumbers
osg::buffered_object< Coords3 >	_transformedBackdropCoords [8]
ColorCoords	_colorCoords
osg::ref_ptr < osg::DrawElementsUInt >	_quadIndices

Detailed Description

Definition at line 298 of file Text.h.

Member Typedef Documentation

typedef osg::ref_ptr<osg::Vec4Array> osgText::Text::GlyphQuads::ColorCoords

Definition at line 305 of file Text.h.

typedef osg::ref_ptr<osg::Vec2Array> osgText::Text::GlyphQuads::Coords2

Definition at line 302 of file Text.h.

typedef osg::ref_ptr<osg::Vec3Array> osgText::Text::GlyphQuads::Coords3

Definition at line 303 of file Text.h.

typedef std::vector<Glyph*> osgText::Text::GlyphQuads::Glyphs

Definition at line 300 of file Text.h.

typedef std::vector<unsigned int> osgText::Text::GlyphQuads::LineNumbers

Definition at line 301 of file Text.h.

typedef osg::ref_ptr<osg::Vec2Array> osgText::Text::GlyphQuads::TexCoords

Definition at line 304 of file Text.h.

Constructor & Destructor Documentation

osgText::Text::GlyphQuads::GlyphQuads

(

)

osgText::Text::GlyphQuads::GlyphQuads

(

const GlyphQuads &

gq

)

Member Function Documentation

Coords2& osgText::Text::GlyphQuads::getCoords ( )

inline

Definition at line 328 of file Text.h.

const Coords2& osgText::Text::GlyphQuads::getCoords ( ) const

inline

Definition at line 329 of file Text.h.

Glyphs& osgText::Text::GlyphQuads::getGlyphs ( )

inline

Definition at line 325 of file Text.h.

const Glyphs& osgText::Text::GlyphQuads::getGlyphs ( ) const

inline

Definition at line 326 of file Text.h.

LineNumbers& osgText::Text::GlyphQuads::getLineNumbers ( )

inline

Definition at line 337 of file Text.h.

const LineNumbers& osgText::Text::GlyphQuads::getLineNumbers ( ) const

inline

Definition at line 338 of file Text.h.

TexCoords& osgText::Text::GlyphQuads::getTexCoords ( )

inline

Definition at line 334 of file Text.h.

const TexCoords& osgText::Text::GlyphQuads::getTexCoords ( ) const

inline

Definition at line 335 of file Text.h.

Coords3& osgText::Text::GlyphQuads::getTransformedCoords ( unsigned int  contexID )

inline

Definition at line 331 of file Text.h.

const Coords3& osgText::Text::GlyphQuads::getTransformedCoords ( unsigned int  contexID ) const

inline

Definition at line 332 of file Text.h.

void osgText::Text::GlyphQuads::initGlyphQuads

(

)

void osgText::Text::GlyphQuads::initGPUBufferObjects

(

)

void osgText::Text::GlyphQuads::releaseGLObjects

(

osg::State *

state = 0

)

const

If State is non-zero, this function releases OpenGL objects for the specified graphics context. Otherwise, releases OpenGL objexts for all graphics contexts.

void osgText::Text::GlyphQuads::resizeGLObjectBuffers

(

unsigned int

maxSize

)

Resize any per context GLObject buffers to specified size.

void osgText::Text::GlyphQuads::updateQuadIndices

(

)

Member Data Documentation

ColorCoords osgText::Text::GlyphQuads::_colorCoords

Definition at line 314 of file Text.h.

Coords2 osgText::Text::GlyphQuads::_coords

Definition at line 308 of file Text.h.

Glyphs osgText::Text::GlyphQuads::_glyphs

Definition at line 307 of file Text.h.

LineNumbers osgText::Text::GlyphQuads::_lineNumbers

Definition at line 311 of file Text.h.

osg::ref_ptr<osg::DrawElementsUInt> osgText::Text::GlyphQuads::_quadIndices

Definition at line 316 of file Text.h.

TexCoords osgText::Text::GlyphQuads::_texcoords

Definition at line 310 of file Text.h.

osg::buffered_object<Coords3> osgText::Text::GlyphQuads::_transformedBackdropCoords[8]

Definition at line 313 of file Text.h.

osg::buffered_object<Coords3> osgText::Text::GlyphQuads::_transformedCoords

Definition at line 309 of file Text.h.

---

The documentation for this struct was generated from the following file:

• osg_head/include/osgText/Text.h
