osgUtil::Tessellator Class Reference

#include <Tessellator.h>

Inheritance diagram for osgUtil::Tessellator:

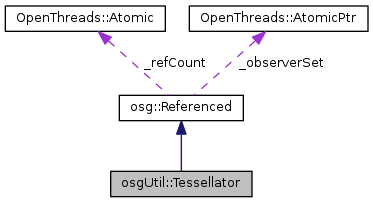

Collaboration diagram for osgUtil::Tessellator:

Classes
struct	NewVertex
struct	Prim
struct	Vec3d

Public Types
enum	WindingType {   TESS_WINDING_ODD = GLU_TESS_WINDING_ODD, TESS_WINDING_NONZERO = GLU_TESS_WINDING_NONZERO, TESS_WINDING_POSITIVE = GLU_TESS_WINDING_POSITIVE, TESS_WINDING_NEGATIVE = GLU_TESS_WINDING_NEGATIVE,   TESS_WINDING_ABS_GEQ_TWO = GLU_TESS_WINDING_ABS_GEQ_TWO }
enum	TessellationType { TESS_TYPE_GEOMETRY, TESS_TYPE_DRAWABLE, TESS_TYPE_POLYGONS }
typedef std::vector < osg::ref_ptr< Prim > >	PrimList

Public Member Functions
	Tessellator ()
	~Tessellator ()
void	setBoundaryOnly (const bool tt)
bool	getBoundaryOnly ()
void	setWindingType (const WindingType wt)
WindingType	getWindingType ()
void	setTessellationType (const TessellationType tt)
TessellationType	getTessellationType ()
void	retessellatePolygons (osg::Geometry &cxgeom)
void	setTessellationNormal (const osg::Vec3 norm)
osg::Geometry::PrimitiveSetList	getContours ()
virtual void	beginTessellation ()
void	beginContour ()
void	addVertex (osg::Vec3 *vertex)
void	endContour ()
void	endTessellation ()
PrimList &	getPrimList ()
void	reset ()
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Types
typedef std::map< osg::Vec3 *, unsigned int >	VertexPtrToIndexMap
typedef std::vector< NewVertex >	NewVertexList
typedef std::vector< Vec3d * >	Vec3dList

Protected Member Functions
void	reduceArray (osg::Array *cold, const unsigned int nnu)
void	collectTessellation (osg::Geometry &cxgeom, unsigned int originalIndex)
void	addContour (GLenum mode, unsigned int first, unsigned int last, osg::Vec3Array *vertices)
void	addContour (osg::PrimitiveSet *primitive, osg::Vec3Array *vertices)
void	handleNewVertices (osg::Geometry &geom, VertexPtrToIndexMap &vertexPtrToIndexMap)
void	begin (GLenum mode)
void	vertex (osg::Vec3 *vertex)
void	combine (osg::Vec3 *vertex, void *vertex_data[4], GLfloat weight[4])
void	end ()
void	error (GLenum errorCode)
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Static Protected Member Functions
static void CALLBACK	beginCallback (GLenum which, void *userData)
static void CALLBACK	vertexCallback (GLvoid *data, void *userData)
static void CALLBACK	combineCallback (GLdouble coords[3], void *vertex_data[4], GLfloat weight[4], void **outData, void *useData)
static void CALLBACK	endCallback (void *userData)
static void CALLBACK	errorCallback (GLenum errorCode, void *userData)

Protected Attributes
osg::GLUtesselator *	_tobj
PrimList	_primList
Vec3dList	_coordData
NewVertexList	_newVertexList
GLenum	_errorCode
WindingType	_wtype
TessellationType	_ttype
bool	_boundaryOnly
unsigned int	_numberVerts
osg::Geometry::PrimitiveSetList	_Contours
unsigned int	_index
osg::Vec3	tessNormal
unsigned int	_extraPrimitives
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

Originally a simple class for tessellating a single polygon boundary. Using old style glu tessellation functions for portability. Upgraded Jan 2004 to use the modern glu tessellation functions.

Definition at line 36 of file Tessellator.h.

Member Typedef Documentation

typedef std::vector<NewVertex> osgUtil::Tessellator::NewVertexList

protected

Definition at line 215 of file Tessellator.h.

typedef std::vector< osg::ref_ptr<Prim> > osgUtil::Tessellator::PrimList

Definition at line 114 of file Tessellator.h.

typedef std::vector<Vec3d*> osgUtil::Tessellator::Vec3dList

protected

Definition at line 216 of file Tessellator.h.

typedef std::map<osg::Vec3*,unsigned int> osgUtil::Tessellator::VertexPtrToIndexMap

protected

Definition at line 129 of file Tessellator.h.

Member Enumeration Documentation

enum osgUtil::Tessellator::TessellationType

we interpret all contours in the geometry as a single set to be tessellated or each separate drawable's contours needs to be tessellated.

Enumerator
TESS_TYPE_GEOMETRY
TESS_TYPE_DRAWABLE
TESS_TYPE_POLYGONS

Definition at line 54 of file Tessellator.h.

enum osgUtil::Tessellator::WindingType

The winding rule, see red book ch 11.

Enumerator
TESS_WINDING_ODD
TESS_WINDING_NONZERO
TESS_WINDING_POSITIVE
TESS_WINDING_NEGATIVE
TESS_WINDING_ABS_GEQ_TWO

Definition at line 44 of file Tessellator.h.

Constructor & Destructor Documentation

osgUtil::Tessellator::Tessellator

(

)

osgUtil::Tessellator::~Tessellator

(

)

Member Function Documentation

void osgUtil::Tessellator::addContour ( GLenum  mode, unsigned int  first, unsigned int  last, osg::Vec3Array *  vertices  )

protected

void osgUtil::Tessellator::addContour ( osg::PrimitiveSet *  primitive, osg::Vec3Array *  vertices  )

protected

void osgUtil::Tessellator::addVertex

(

osg::Vec3 *

vertex

)

Add a vertex to the current contour, see gluTessVertex for details. Note the vertex pointer is returned at the end of tessellation and must not be left dangling or be overwritten until all results are collected.

void osgUtil::Tessellator::begin ( GLenum  mode )

protected

static void CALLBACK osgUtil::Tessellator::beginCallback ( GLenum  which, void *  userData  )

staticprotected

void osgUtil::Tessellator::beginContour

(

)

virtual void osgUtil::Tessellator::beginTessellation ( )

virtual

void osgUtil::Tessellator::collectTessellation ( osg::Geometry &  cxgeom, unsigned int  originalIndex  )

protected

void osgUtil::Tessellator::combine ( osg::Vec3 *  vertex, void *  vertex_data[4], GLfloat  weight[4]  )

protected

static void CALLBACK osgUtil::Tessellator::combineCallback ( GLdouble  coords[3], void *  vertex_data[4], GLfloat  weight[4], void **  outData, void *  useData  )

staticprotected

void osgUtil::Tessellator::end ( )

protected

static void CALLBACK osgUtil::Tessellator::endCallback ( void *  userData )

staticprotected

void osgUtil::Tessellator::endContour

(

)

void osgUtil::Tessellator::endTessellation

(

)

void osgUtil::Tessellator::error ( GLenum  errorCode )

protected

static void CALLBACK osgUtil::Tessellator::errorCallback ( GLenum  errorCode, void *  userData  )

staticprotected

bool osgUtil::Tessellator::getBoundaryOnly ( )

inline

Definition at line 62 of file Tessellator.h.

osg::Geometry::PrimitiveSetList osgUtil::Tessellator::getContours ( )

inline

Definition at line 87 of file Tessellator.h.

PrimList& osgUtil::Tessellator::getPrimList ( )

inline

Definition at line 116 of file Tessellator.h.

TessellationType osgUtil::Tessellator::getTessellationType ( )

inline

Definition at line 70 of file Tessellator.h.

WindingType osgUtil::Tessellator::getWindingType ( )

inline

Definition at line 66 of file Tessellator.h.

void osgUtil::Tessellator::handleNewVertices ( osg::Geometry &  geom, VertexPtrToIndexMap &  vertexPtrToIndexMap  )

protected

void osgUtil::Tessellator::reduceArray ( osg::Array *  cold, const unsigned int  nnu  )

protected

remove unused parts of the array, eg for when retessellating tessellation can introduce extra vertices for concave or crossing boundaries, these will leak memory if not removed when retessellating.

void osgUtil::Tessellator::reset

(

)

void osgUtil::Tessellator::retessellatePolygons

(

osg::Geometry &

cxgeom

)

Change the contours lists of the geometry into tessellated primitives (the list of primitives in the original geometry is stored in the Tessellator for possible re-use. The name remains retessellatePolygons although it now handles trifans, strips, quads etc. as well as Polygons so as to not break old codes relying on this function name.

void osgUtil::Tessellator::setBoundaryOnly ( const bool  tt )

inline

Set and get tessellation request boundary only on/off

Definition at line 61 of file Tessellator.h.

void osgUtil::Tessellator::setTessellationNormal ( const osg::Vec3  norm )

inline

Define the normal to the tessellated polygon - this provides a hint how to tessellate the contours; see gluTessNormal in red book or man pages. GWM July 2005. Can improve teselation "For example, if you know that all polygons lie in the x-y plane, call gluTessNormal(tess, 0.0, 0.0, 1.0) before rendering any polygons."

Definition at line 85 of file Tessellator.h.

void osgUtil::Tessellator::setTessellationType ( const TessellationType  tt )

inline

Set and get tessellation type

Definition at line 69 of file Tessellator.h.

void osgUtil::Tessellator::setWindingType ( const WindingType  wt )

inline

Set and get tessellation windong rule

Definition at line 65 of file Tessellator.h.

void osgUtil::Tessellator::vertex ( osg::Vec3 *  vertex )

protected

static void CALLBACK osgUtil::Tessellator::vertexCallback ( GLvoid *  data, void *  userData  )

staticprotected

Member Data Documentation

bool osgUtil::Tessellator::_boundaryOnly

protected

Definition at line 231 of file Tessellator.h.

osg::Geometry::PrimitiveSetList osgUtil::Tessellator::_Contours

protected

List of primitives that define the contours

Definition at line 237 of file Tessellator.h.

Vec3dList osgUtil::Tessellator::_coordData

protected

Definition at line 221 of file Tessellator.h.

GLenum osgUtil::Tessellator::_errorCode

protected

Definition at line 223 of file Tessellator.h.

unsigned int osgUtil::Tessellator::_extraPrimitives

protected

count of number of extra primitives added

Definition at line 246 of file Tessellator.h.

unsigned int osgUtil::Tessellator::_index

protected

count number of primitives in a geometry to get right no. of norms/colurs etc for per_primitive attributes.

Definition at line 240 of file Tessellator.h.

NewVertexList osgUtil::Tessellator::_newVertexList

protected

Definition at line 222 of file Tessellator.h.

unsigned int osgUtil::Tessellator::_numberVerts

protected

number of vertices that are part of the 'original' set of contours

Definition at line 234 of file Tessellator.h.

PrimList osgUtil::Tessellator::_primList

protected

Definition at line 220 of file Tessellator.h.

osg::GLUtesselator* osgUtil::Tessellator::_tobj

protected

Definition at line 218 of file Tessellator.h.

TessellationType osgUtil::Tessellator::_ttype

protected

tessellation rule, which parts will become solid

Definition at line 229 of file Tessellator.h.

WindingType osgUtil::Tessellator::_wtype

protected

winding rule, which parts will become solid

Definition at line 226 of file Tessellator.h.

osg::Vec3 osgUtil::Tessellator::tessNormal

protected

the gluTessNormal for tessellation hint

Definition at line 243 of file Tessellator.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgUtil/Tessellator.h
