#include <ClassInterface.h>

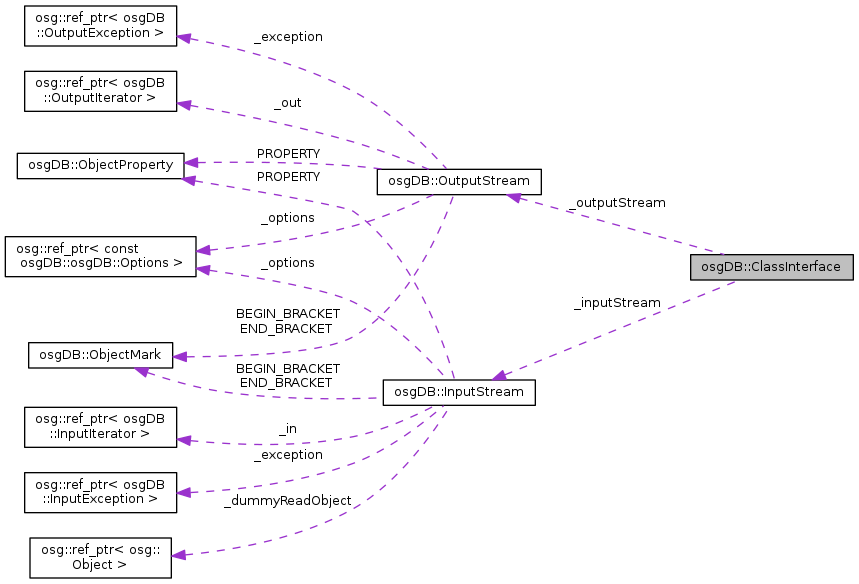

Collaboration diagram for osgDB::ClassInterface:

Public Types
typedef std::map< std::string, osgDB::BaseSerializer::Type >	PropertyMap
	Properties supported for a single class. More...

typedef std::map< std::string, PropertyMap >	ObjectPropertyMap
	Properties supported for a range of classes, used for white and black lists. More...

Public Member Functions
	ClassInterface ()

bool	getPropertyType (const osg::Object *object, const std::string &propertyName, osgDB::BaseSerializer::Type &type) const
	get the Type of the specified property, return true if property is supported, otherwise false. More...

bool	areTypesCompatible (osgDB::BaseSerializer::Type lhs, osgDB::BaseSerializer::Type rhs) const
	return type of two types are compatible More...

osg::Object *	createObject (const std::string &compoundClassdName) const

template<typename T >
bool	getProperty (const osg::Object *object, const std::string &propertyName, T &value)
	template method for getting property data, return true if property available and the type is compatible, otherwise returns false. More...

template<typename T >
bool	setProperty (osg::Object *object, const std::string &propertyName, const T &value)
	template method for setting property data, return true if property available and the type is compatible, otherwise returns false. More...

std::string	getTypeName (osgDB::BaseSerializer::Type type) const
	get the human readable name of type. More...

osgDB::BaseSerializer::Type	getType (const std::string &typeName) const
	get the enum value of type given the human readable name. More...

bool	getSupportedProperties (const osg::Object *object, PropertyMap &properties, bool searchAssociates=true) const
	Get the list of of properties supported by object. More...

bool	isObjectOfType (const osg::Object *object, const std::string &compoundClassName) const
	return true if the object can be cast to the specified class specified by compoundClassName More...

bool	run (void *objectPtr, const std::string &compoundClassName, const std::string &methodName, osg::Parameters &inputParameters, osg::Parameters &outputParameters) const
	run method of object More...

bool	run (osg::Object *object, const std::string &methodName, osg::Parameters &inputParameters, osg::Parameters &outputParameters) const
	run method of object More...

bool	hasMethod (const std::string &compoundClassName, const std::string &methodName) const
	checked for support of specificed method More...

bool	hasMethod (const osg::Object *object, const std::string &methodName) const
	checked for support of specificed method More...

ObjectPropertyMap &	getWhiteList ()
	Get the list of properties that are explicitly defined as supported. More...

const ObjectPropertyMap &	getWhiteList () const
	Get the const list of properties that are explicitly defined as supported. More...

ObjectPropertyMap &	getBlackList ()
	Get the list of properties that are explicitly defined as not supported. More...

const ObjectPropertyMap &	getBlackList () const
	Get the const list of properties that are explicitly defined as not supported. More...

osgDB::ObjectWrapper *	getObjectWrapper (const osg::Object *object) const

osgDB::BaseSerializer *	getSerializer (const osg::Object *object, const std::string &propertyName, osgDB::BaseSerializer::Type &type) const

template<>
bool	getProperty (const osg::Object *object, const std::string &propertyName, ObjectPtr &value)

template<>
bool	setProperty (osg::Object *object, const std::string &propertyName, const ObjectPtr &value)

Protected Types
typedef std::map< std::string, osgDB::BaseSerializer::Type >	TypeNameToTypeMap

typedef std::map < osgDB::BaseSerializer::Type, std::string >	TypeToTypeNameMap

Protected Member Functions
bool	copyPropertyDataFromObject (const osg::Object object, const std::string &propertyName, void valuePtr, unsigned int valueSize, osgDB::BaseSerializer::Type valueType)

bool	copyPropertyDataToObject (osg::Object object, const std::string &propertyName, const void valuePtr, unsigned int valueSize, osgDB::BaseSerializer::Type valueType)

bool	copyPropertyObjectFromObject (const osg::Object object, const std::string &propertyName, void valuePtr, unsigned int valueSize, osgDB::BaseSerializer::Type valueType)

bool	copyPropertyObjectToObject (osg::Object object, const std::string &propertyName, const void valuePtr, unsigned int valueSize, osgDB::BaseSerializer::Type valueType)

Protected Attributes
osgDB::OutputStream	_outputStream

PropertyOutputIterator *	_poi

osgDB::InputStream	_inputStream

PropertyInputIterator *	_pii

TypeNameToTypeMap	_typeNameToTypeMap

TypeToTypeNameMap	_typeToTypeNameMap

ObjectPropertyMap	_whiteList

ObjectPropertyMap	_blackList

Detailed Description

ClassInterface provides a general means of checking for supported properties of classes, and getting/setting thoses properties. Uses the osgDB serializers to do the actual object query/get/set.

Definition at line 121 of file ClassInterface.h.

Member Typedef Documentation

typedef std::map<std::string, PropertyMap> osgDB::ClassInterface::ObjectPropertyMap

Properties supported for a range of classes, used for white and black lists.

Definition at line 177 of file ClassInterface.h.

typedef std::map<std::string, osgDB::BaseSerializer::Type> osgDB::ClassInterface::PropertyMap

Properties supported for a single class.

Definition at line 154 of file ClassInterface.h.

typedef std::map<std::string, osgDB::BaseSerializer::Type> osgDB::ClassInterface::TypeNameToTypeMap

protected

Definition at line 213 of file ClassInterface.h.

typedef std::map<osgDB::BaseSerializer::Type, std::string> osgDB::ClassInterface::TypeToTypeNameMap

protected

Definition at line 214 of file ClassInterface.h.

Constructor & Destructor Documentation

osgDB::ClassInterface::ClassInterface ( )

Member Function Documentation

bool osgDB::ClassInterface::areTypesCompatible	(	osgDB::BaseSerializer::Type	lhs,
		osgDB::BaseSerializer::Type	rhs
	)		const

return type of two types are compatible

bool osgDB::ClassInterface::copyPropertyDataFromObject	(	const osg::Object *	object,
		const std::string &	propertyName,
		void *	valuePtr,
		unsigned int	valueSize,
		osgDB::BaseSerializer::Type	valueType
	)

protected

Here is the caller graph for this function:

bool osgDB::ClassInterface::copyPropertyDataToObject	(	osg::Object *	object,
		const std::string &	propertyName,
		const void *	valuePtr,
		unsigned int	valueSize,
		osgDB::BaseSerializer::Type	valueType
	)

protected

Here is the caller graph for this function:

bool osgDB::ClassInterface::copyPropertyObjectFromObject	(	const osg::Object *	object,
		const std::string &	propertyName,
		void *	valuePtr,
		unsigned int	valueSize,
		osgDB::BaseSerializer::Type	valueType
	)

protected

Here is the caller graph for this function:

bool osgDB::ClassInterface::copyPropertyObjectToObject	(	osg::Object *	object,
		const std::string &	propertyName,
		const void *	valuePtr,
		unsigned int	valueSize,
		osgDB::BaseSerializer::Type	valueType
	)

protected

Here is the caller graph for this function:

osg::Object* osgDB::ClassInterface::createObject ( const std::string & compoundClassdName ) const

create an object of specified type for provided compound class name in the form libraryName::className.

ObjectPropertyMap& osgDB::ClassInterface::getBlackList ( )

inline

Get the list of properties that are explicitly defined as not supported.

Definition at line 186 of file ClassInterface.h.

const ObjectPropertyMap& osgDB::ClassInterface::getBlackList ( ) const

inline

Get the const list of properties that are explicitly defined as not supported.

Definition at line 189 of file ClassInterface.h.

osgDB::ObjectWrapper* osgDB::ClassInterface::getObjectWrapper ( const osg::Object * object ) const

template<typename T >

bool osgDB::ClassInterface::getProperty	(	const osg::Object *	object,
		const std::string &	propertyName,
		T &	value
	)

template method for getting property data, return true if property available and the type is compatible, otherwise returns false.

Definition at line 225 of file ClassInterface.h.

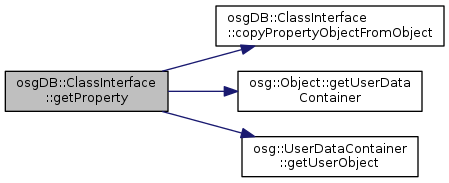

Here is the call graph for this function:

template<>

bool osgDB::ClassInterface::getProperty	(	const osg::Object *	object,
		const std::string &	propertyName,
		ObjectPtr &	value
	)

inline

Definition at line 246 of file ClassInterface.h.

Here is the call graph for this function:

bool osgDB::ClassInterface::getPropertyType	(	const osg::Object *	object,
		const std::string &	propertyName,
		osgDB::BaseSerializer::Type &	type
	)		const

get the Type of the specified property, return true if property is supported, otherwise false.

osgDB::BaseSerializer* osgDB::ClassInterface::getSerializer	(	const osg::Object *	object,
		const std::string &	propertyName,
		osgDB::BaseSerializer::Type &	type
	)		const

bool osgDB::ClassInterface::getSupportedProperties	(	const osg::Object *	object,
		PropertyMap &	properties,
		bool	searchAssociates = `true`
	)		const

Get the list of of properties supported by object.

osgDB::BaseSerializer::Type osgDB::ClassInterface::getType ( const std::string & typeName ) const

get the enum value of type given the human readable name.

std::string osgDB::ClassInterface::getTypeName ( osgDB::BaseSerializer::Type type ) const

get the human readable name of type.

ObjectPropertyMap& osgDB::ClassInterface::getWhiteList ( )

inline

Get the list of properties that are explicitly defined as supported.

Definition at line 180 of file ClassInterface.h.

const ObjectPropertyMap& osgDB::ClassInterface::getWhiteList ( ) const

inline

Get the const list of properties that are explicitly defined as supported.

Definition at line 183 of file ClassInterface.h.

bool osgDB::ClassInterface::hasMethod	(	const std::string &	compoundClassName,
		const std::string &	methodName
	)		const

checked for support of specificed method

bool osgDB::ClassInterface::hasMethod	(	const osg::Object *	object,
		const std::string &	methodName
	)		const

checked for support of specificed method

bool osgDB::ClassInterface::isObjectOfType	(	const osg::Object *	object,
		const std::string &	compoundClassName
	)		const

return true if the object can be cast to the specified class specified by compoundClassName

bool osgDB::ClassInterface::run	(	void *	objectPtr,
		const std::string &	compoundClassName,
		const std::string &	methodName,
		osg::Parameters &	inputParameters,
		osg::Parameters &	outputParameters
	)		const

run method of object

bool osgDB::ClassInterface::run	(	osg::Object *	object,
		const std::string &	methodName,
		osg::Parameters &	inputParameters,
		osg::Parameters &	outputParameters
	)		const

run method of object

template<typename T >

bool osgDB::ClassInterface::setProperty	(	osg::Object *	object,
		const std::string &	propertyName,
		const T &	value
	)

template method for setting property data, return true if property available and the type is compatible, otherwise returns false.

Definition at line 232 of file ClassInterface.h.

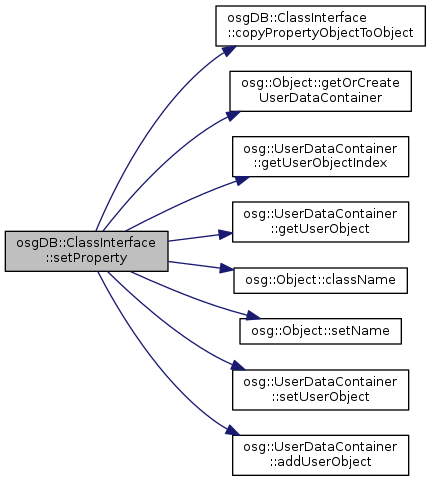

Here is the call graph for this function:

template<>

bool osgDB::ClassInterface::setProperty	(	osg::Object *	object,
		const std::string &	propertyName,
		const ObjectPtr &	value
	)

inline

Definition at line 268 of file ClassInterface.h.

Here is the call graph for this function:

Member Data Documentation

ObjectPropertyMap osgDB::ClassInterface::_blackList

protected

Definition at line 220 of file ClassInterface.h.

osgDB::InputStream osgDB::ClassInterface::_inputStream

protected

Definition at line 210 of file ClassInterface.h.

osgDB::OutputStream osgDB::ClassInterface::_outputStream

protected

Definition at line 207 of file ClassInterface.h.

PropertyInputIterator* osgDB::ClassInterface::_pii

protected

Definition at line 211 of file ClassInterface.h.

PropertyOutputIterator* osgDB::ClassInterface::_poi

protected

Definition at line 208 of file ClassInterface.h.

TypeNameToTypeMap osgDB::ClassInterface::_typeNameToTypeMap

protected

Definition at line 216 of file ClassInterface.h.

TypeToTypeNameMap osgDB::ClassInterface::_typeToTypeNameMap

protected

Definition at line 217 of file ClassInterface.h.

ObjectPropertyMap osgDB::ClassInterface::_whiteList

protected

Definition at line 219 of file ClassInterface.h.

The documentation for this class was generated from the following file:

osg_head/include/osgDB/ClassInterface.h
