osgAnimation::RigTransformSoftware Class Reference

This class manage format for software skinning. More...

#include <RigTransformSoftware.h>

Inheritance diagram for osgAnimation::RigTransformSoftware:

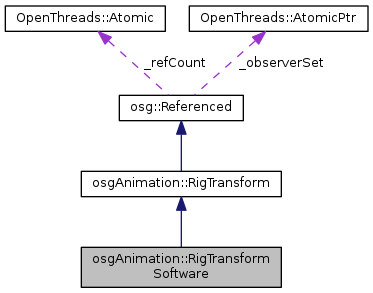

Collaboration diagram for osgAnimation::RigTransformSoftware:

Classes
class	BoneWeight
class	UniqBoneSetVertexSet

Public Types
typedef std::vector< BoneWeight >	BoneWeightList
typedef std::vector< int >	VertexList

Public Member Functions
	RigTransformSoftware ()
virtual void	operator() (RigGeometry &)
template<class V >
void	compute (const osg::Matrix &transform, const osg::Matrix &invTransform, const V *src, V *dst)
template<class V >
void	computeNormal (const osg::Matrix &transform, const osg::Matrix &invTransform, const V *src, V *dst)
Public Member Functions inherited from osgAnimation::RigTransform
	RigTransform ()
virtual	~RigTransform ()
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
bool	init (RigGeometry &)
void	initVertexSetFromBones (const BoneMap &map, const VertexInfluenceSet::UniqVertexSetToBoneSetList &influence)
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
std::vector< UniqBoneSetVertexSet >	_boneSetVertexSet
bool	_needInit
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

This class manage format for software skinning.

Definition at line 30 of file RigTransformSoftware.h.

Member Typedef Documentation

typedef std::vector<BoneWeight> osgAnimation::RigTransformSoftware::BoneWeightList

Definition at line 50 of file RigTransformSoftware.h.

typedef std::vector<int> osgAnimation::RigTransformSoftware::VertexList

Definition at line 51 of file RigTransformSoftware.h.

Constructor & Destructor Documentation

osgAnimation::RigTransformSoftware::RigTransformSoftware

(

)

Member Function Documentation

template<class V >

void osgAnimation::RigTransformSoftware::compute ( const osg::Matrix &  transform, const osg::Matrix &  invTransform, const V *  src, V *  dst  )

inline

Definition at line 121 of file RigTransformSoftware.h.

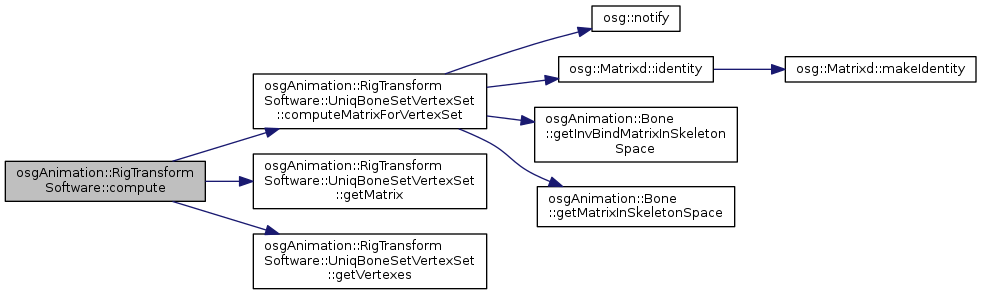

Here is the call graph for this function:

template<class V >

void osgAnimation::RigTransformSoftware::computeNormal ( const osg::Matrix &  transform, const osg::Matrix &  invTransform, const V *  src, V *  dst  )

inline

Definition at line 142 of file RigTransformSoftware.h.

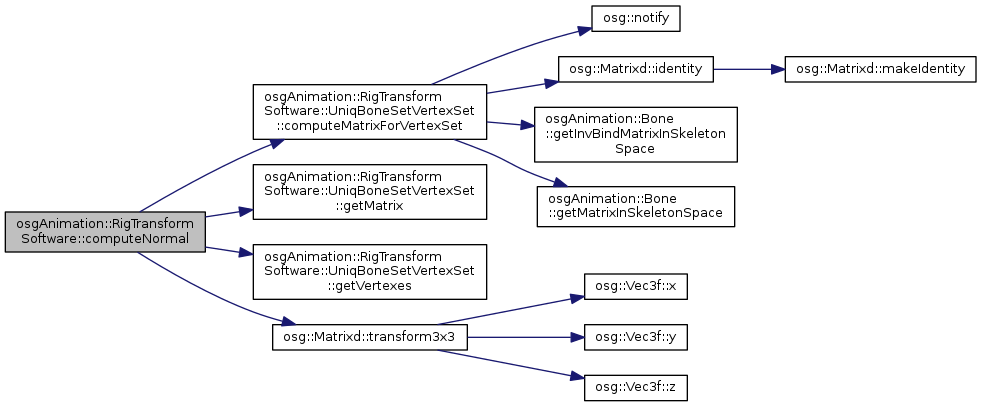

Here is the call graph for this function:

bool osgAnimation::RigTransformSoftware::init ( RigGeometry &  )

protected

void osgAnimation::RigTransformSoftware::initVertexSetFromBones ( const BoneMap &  map, const VertexInfluenceSet::UniqVertexSetToBoneSetList &  influence  )

protected

virtual void osgAnimation::RigTransformSoftware::operator() ( RigGeometry &  )

virtual

Reimplemented from osgAnimation::RigTransform.

Member Data Documentation

std::vector<UniqBoneSetVertexSet> osgAnimation::RigTransformSoftware::_boneSetVertexSet

protected

Definition at line 165 of file RigTransformSoftware.h.

bool osgAnimation::RigTransformSoftware::_needInit

protected

Definition at line 167 of file RigTransformSoftware.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgAnimation/RigTransformSoftware.h
