#include <BoundingBox.h>

Public Types
typedef VT	vec_type

typedef VT::value_type	value_type

Public Member Functions
	BoundingBoxImpl ()

template<typename BT >
	BoundingBoxImpl (const BoundingBoxImpl< BT > &bb)

	BoundingBoxImpl (value_type xmin, value_type ymin, value_type zmin, value_type xmax, value_type ymax, value_type zmax)

	BoundingBoxImpl (const vec_type &min, const vec_type &max)

void	init ()

bool	operator== (const BoundingBoxImpl &rhs) const

bool	operator!= (const BoundingBoxImpl &rhs) const

bool	valid () const

void	set (value_type xmin, value_type ymin, value_type zmin, value_type xmax, value_type ymax, value_type zmax)

void	set (const vec_type &min, const vec_type &max)

value_type &	xMin ()

value_type	xMin () const

value_type &	yMin ()

value_type	yMin () const

value_type &	zMin ()

value_type	zMin () const

value_type &	xMax ()

value_type	xMax () const

value_type &	yMax ()

value_type	yMax () const

value_type &	zMax ()

value_type	zMax () const

const vec_type	center () const

value_type	radius () const

value_type	radius2 () const

const vec_type	corner (unsigned int pos) const

void	expandBy (const vec_type &v)

void	expandBy (value_type x, value_type y, value_type z)

void	expandBy (const BoundingBoxImpl &bb)

template<typename BST >
void	expandBy (const BoundingSphereImpl< BST > &sh)

BoundingBoxImpl	intersect (const BoundingBoxImpl &bb) const

bool	intersects (const BoundingBoxImpl &bb) const

bool	contains (const vec_type &v) const

bool	contains (const vec_type &v, value_type epsilon) const

Public Attributes
vec_type	_min

vec_type	_max

Detailed Description

template<typename VT>
singleton osg::BoundingBoxImpl< VT >

General purpose axis-aligned bounding box class for enclosing objects/vertices. Bounds leaf objects in a scene such as osg::Drawable objects. Used for frustum culling etc.

Definition at line 33 of file BoundingBox.h.

Member Typedef Documentation

template<typename VT>

typedef VT::value_type osg::BoundingBoxImpl< VT >::value_type

Definition at line 37 of file BoundingBox.h.

template<typename VT>

typedef VT osg::BoundingBoxImpl< VT >::vec_type

Definition at line 36 of file BoundingBox.h.

Constructor & Destructor Documentation

template<typename VT>

osg::BoundingBoxImpl< VT >::BoundingBoxImpl ( )

inline

Creates an uninitialized bounding box.

Definition at line 45 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

template<typename BT >

osg::BoundingBoxImpl< VT >::BoundingBoxImpl ( const BoundingBoxImpl< BT > & bb )

inline

Definition at line 55 of file BoundingBox.h.

template<typename VT>

osg::BoundingBoxImpl< VT >::BoundingBoxImpl	(	value_type	xmin,
		value_type	ymin,
		value_type	zmin,
		value_type	xmax,
		value_type	ymax,
		value_type	zmax
	)

inline

Creates a bounding box initialized to the given extents.

Definition at line 61 of file BoundingBox.h.

template<typename VT>

osg::BoundingBoxImpl< VT >::BoundingBoxImpl	(	const vec_type &	min,
		const vec_type &	max
	)

inline

Creates a bounding box initialized to the given extents.

Definition at line 67 of file BoundingBox.h.

Member Function Documentation

template<typename VT>

const vec_type osg::BoundingBoxImpl< VT >::center ( ) const

inline

Calculates and returns the bounding box center.

Definition at line 126 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

bool osg::BoundingBoxImpl< VT >::contains ( const vec_type & v ) const

inline

Returns true if this bounding box contains the specified coordinate.

Definition at line 233 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

bool osg::BoundingBoxImpl< VT >::contains	(	const vec_type &	v,
		value_type	epsilon
	)		const

inline

Returns true if this bounding box contains the specified coordinate allowing for specific epsilon.

Definition at line 242 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

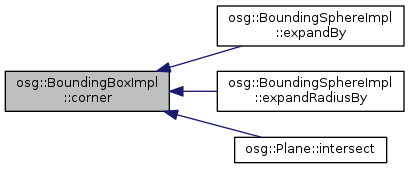

const vec_type osg::BoundingBoxImpl< VT >::corner ( unsigned int pos ) const

inline

Returns a specific corner of the bounding box. pos specifies the corner as a number between 0 and 7. Each bit selects an axis, X, Y, or Z from least- to most-significant. Unset bits select the minimum value for that axis, and set bits select the maximum.

Definition at line 149 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

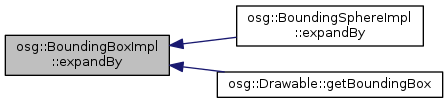

void osg::BoundingBoxImpl< VT >::expandBy ( const vec_type & v )

inline

Expands the bounding box to include the given coordinate. If the box is uninitialized, set its min and max extents to v.

Definition at line 156 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

void osg::BoundingBoxImpl< VT >::expandBy	(	value_type	x,
		value_type	y,
		value_type	z
	)

inline

Expands the bounding box to include the given coordinate. If the box is uninitialized, set its min and max extents to Vec3(x,y,z).

Definition at line 171 of file BoundingBox.h.

template<typename VT>

void osg::BoundingBoxImpl< VT >::expandBy ( const BoundingBoxImpl< VT > & bb )

inline

Expands this bounding box to include the given bounding box. If this box is uninitialized, set it equal to bb.

Definition at line 185 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

template<typename BST >

void osg::BoundingBoxImpl< VT >::expandBy ( const BoundingSphereImpl< BST > & sh )

inline

Expands this bounding box to include the given sphere. If this box is uninitialized, set it to include sh.

Definition at line 202 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

void osg::BoundingBoxImpl< VT >::init ( )

inline

Clear the bounding box. Erases existing minimum and maximum extents.

Definition at line 72 of file BoundingBox.h.

template<typename VT>

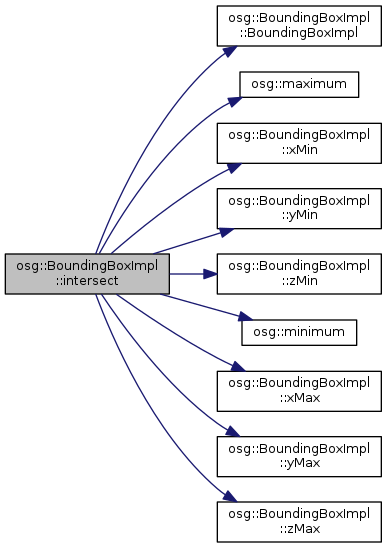

BoundingBoxImpl osg::BoundingBoxImpl< VT >::intersect ( const BoundingBoxImpl< VT > & bb ) const

inline

Returns the intersection of this bounding box and the specified bounding box.

Definition at line 218 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

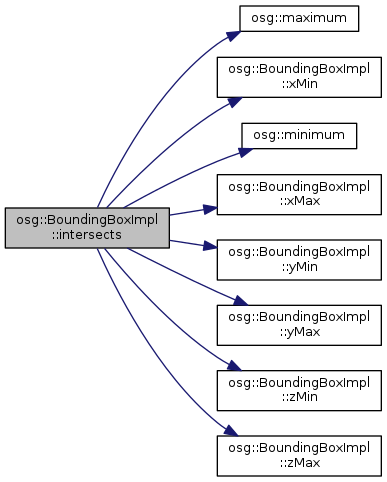

bool osg::BoundingBoxImpl< VT >::intersects ( const BoundingBoxImpl< VT > & bb ) const

inline

Return true if this bounding box intersects the specified bounding box.

Definition at line 225 of file BoundingBox.h.

Here is the call graph for this function:

template<typename VT>

bool osg::BoundingBoxImpl< VT >::operator!= ( const BoundingBoxImpl< VT > & rhs ) const

inline

Definition at line 83 of file BoundingBox.h.

template<typename VT>

bool osg::BoundingBoxImpl< VT >::operator== ( const BoundingBoxImpl< VT > & rhs ) const

inline

Definition at line 82 of file BoundingBox.h.

template<typename VT>

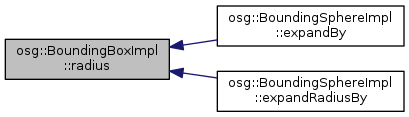

value_type osg::BoundingBoxImpl< VT >::radius ( ) const

inline

Calculates and returns the bounding box radius.

Definition at line 132 of file BoundingBox.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename VT>

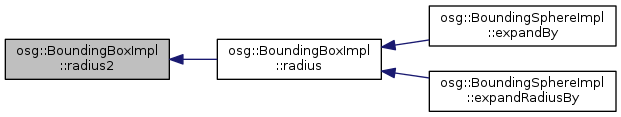

value_type osg::BoundingBoxImpl< VT >::radius2 ( ) const

inline

Calculates and returns the squared length of the bounding box radius. Note, radius2() is faster to calculate than radius().

Definition at line 139 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

void osg::BoundingBoxImpl< VT >::set	(	value_type	xmin,
		value_type	ymin,
		value_type	zmin,
		value_type	xmax,
		value_type	ymax,
		value_type	zmax
	)

inline

Sets the bounding box extents.

Definition at line 92 of file BoundingBox.h.

template<typename VT>

void osg::BoundingBoxImpl< VT >::set	(	const vec_type &	min,
		const vec_type &	max
	)

inline

Sets the bounding box extents.

Definition at line 100 of file BoundingBox.h.

template<typename VT>

bool osg::BoundingBoxImpl< VT >::valid ( ) const

inline

Returns true if the bounding box extents are valid, false otherwise.

Definition at line 86 of file BoundingBox.h.

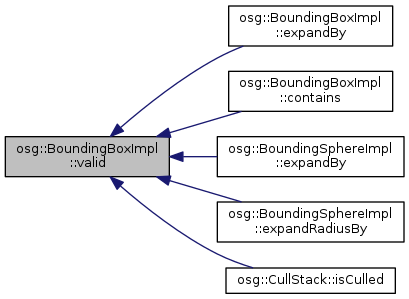

Here is the caller graph for this function:

template<typename VT>

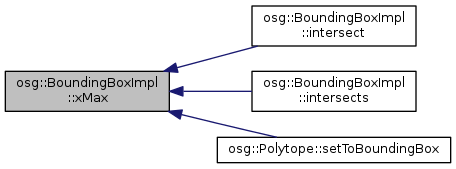

value_type& osg::BoundingBoxImpl< VT >::xMax ( )

inline

Definition at line 116 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::xMax ( ) const

inline

Definition at line 117 of file BoundingBox.h.

template<typename VT>

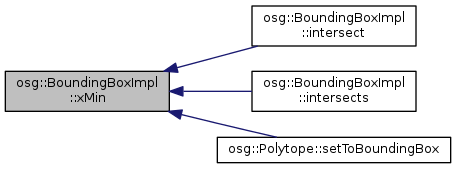

value_type& osg::BoundingBoxImpl< VT >::xMin ( )

inline

Definition at line 107 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::xMin ( ) const

inline

Definition at line 108 of file BoundingBox.h.

template<typename VT>

value_type& osg::BoundingBoxImpl< VT >::yMax ( )

inline

Definition at line 119 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::yMax ( ) const

inline

Definition at line 120 of file BoundingBox.h.

template<typename VT>

value_type& osg::BoundingBoxImpl< VT >::yMin ( )

inline

Definition at line 110 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::yMin ( ) const

inline

Definition at line 111 of file BoundingBox.h.

template<typename VT>

value_type& osg::BoundingBoxImpl< VT >::zMax ( )

inline

Definition at line 122 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::zMax ( ) const

inline

Definition at line 123 of file BoundingBox.h.

template<typename VT>

value_type& osg::BoundingBoxImpl< VT >::zMin ( )

inline

Definition at line 113 of file BoundingBox.h.

Here is the caller graph for this function:

template<typename VT>

value_type osg::BoundingBoxImpl< VT >::zMin ( ) const

inline

Definition at line 114 of file BoundingBox.h.

Member Data Documentation

template<typename VT>

vec_type osg::BoundingBoxImpl< VT >::_max

Maximum extent. (Greatest X, Y, and Z values of all coordinates.)

Definition at line 42 of file BoundingBox.h.

template<typename VT>

vec_type osg::BoundingBoxImpl< VT >::_min

Minimum extent. (Smallest X, Y, and Z values of all coordinates.)

Definition at line 40 of file BoundingBox.h.

The documentation for this singleton was generated from the following file:

osg_head/include/osg/BoundingBox.h
